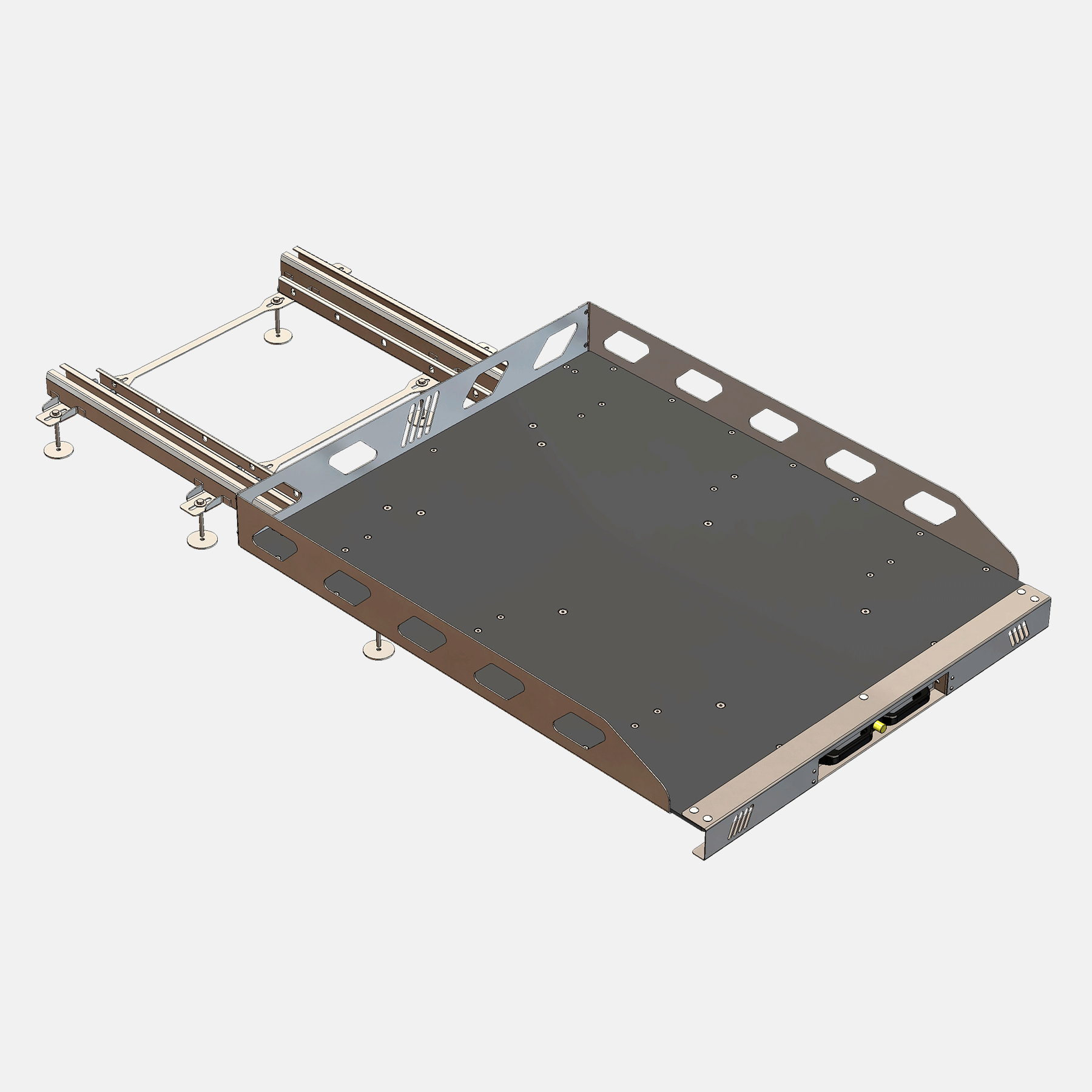

Heavy duty bed slide PESADA 600kg

With our heavy-duty bed slide, the focus is on functionality. The PESADA was developed primarily for the professional sector. When extended, the bed slide can hold 600 kg and is therefore even suitable for forklift loads. This is precisely why the pullout is ideal for construction companies, fire departments and hunters. But it can also be used ideally in sports and leisure activities.

Accuride closure system

A highlight of the drawer pullout's features is the Accuride locking system with 7 locking positions along the travel path. Designed for fire departments and other emergency vehicles, it is designed for everyday use at rated load.

In order to cope with the high weight load of the cargo slide, the locking bolts were made of tool steel. This guarantees that in an emergency one of the two bolts alone can withstand the payload (without permanent damage). The guide system consists of a total of 22 ball bearings, all bearings are insulated and thus defy environmental influences.

Frame and side wall

There are 6 stable screwing points with M10 threads installed in the upper structure, on which customer-specific structures can be fixed. If the drawer bed slide is opened on sloping terrain and fully extended with the release button pressed, there are solid end stops on both sides that slow down the force of the maximum payload.

The side walls not only serve to position the load, they are designed to hook lashing straps into them. In addition, the two side panels can each be moved outwards by around two centimeters, making ideal use of the space in your loading area. The bed slide offers enough space to load a Euro pallet sideways.

All side walls can be unscrewed or just the rear side wall can be used alone. It should be noted that the screws of the unused side walls are still screwed into the birch panel.

Modular construction

Thanks to the modular design of the Cargoslide, individual parts can be obtained and replaced in the event of damage. Since the loading flap of most pickup vehicles is not straight in the open position, but rather slightly upwards, an extension for the “drop cable” can optionally be ordered.

This is necessary because the drawer bed slide extends very close to the floor of the loading area. By inserting the extension, the loading flap opens a little wider so that it points slightly downwards. Alternatively, spacer plates can be placed under the support surfaces of the Cargoslide.

Technical data:

• Own weight: 75 kg
• Extension length: 1000 mm
• Max. payload: 600 kg

Material:

• Frame construction: S235JR
• Loading sill: 304 stainless steel (particularly corrosion-resistant even under heavy use)
• Cover plate: Birch screen-printed plate, sealed on all sides for weather resistance

A notice:

The extract is suitable for the Volkswagen Amarok up to 2019. Newer models require adjustment work. On vehicles with a cargo area liner, the cargo area liner must be removed in order to install the heavy-duty bed slide. We recommend coating the loading area with Herculiner for protection before assembly.

Steel cable extension:

A steel cable extension for the tailgate must be installed, otherwise the extension will hit the tailgate when loaded.
