Rope winch system Suzuki Jimny GJ/HJ 2.0 tons

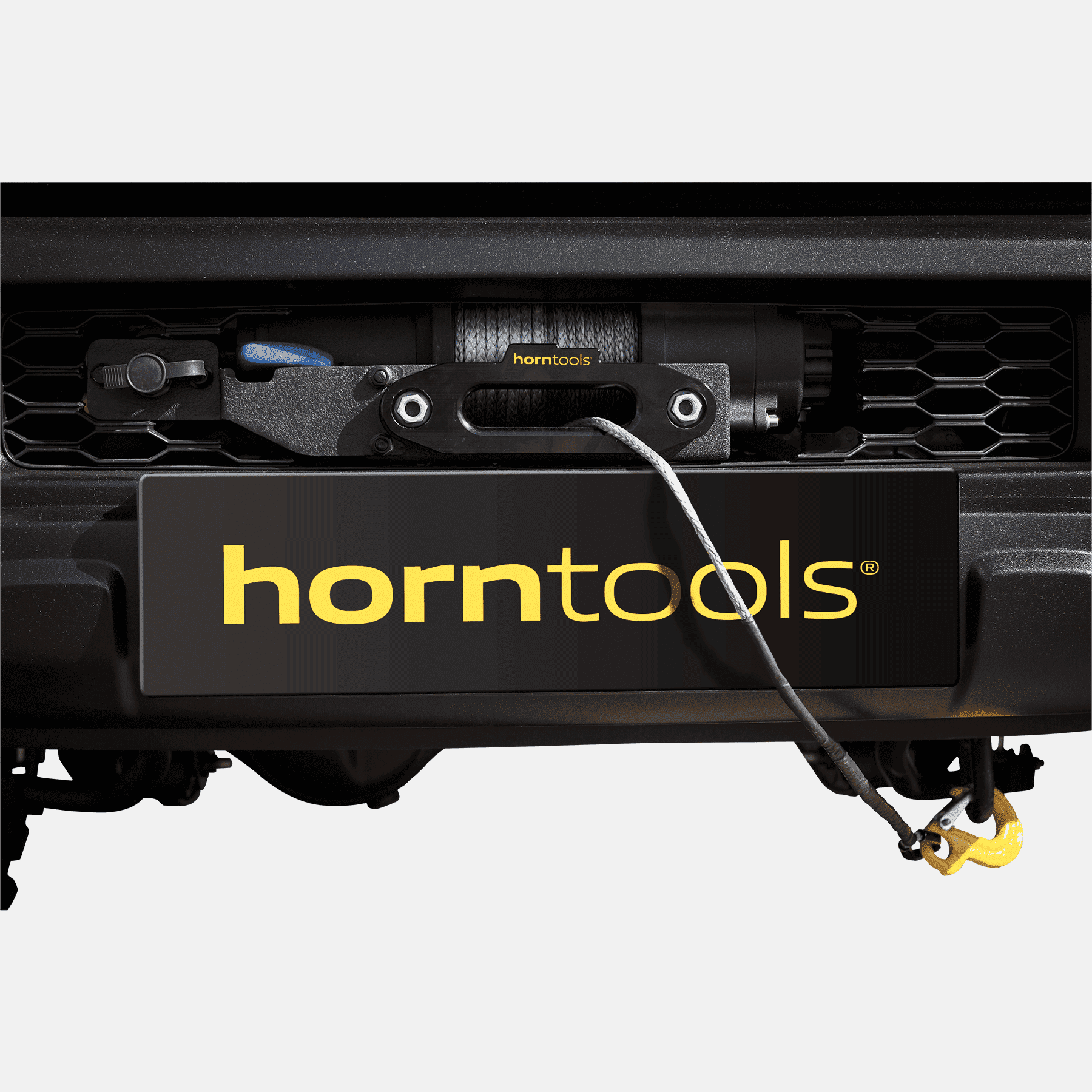

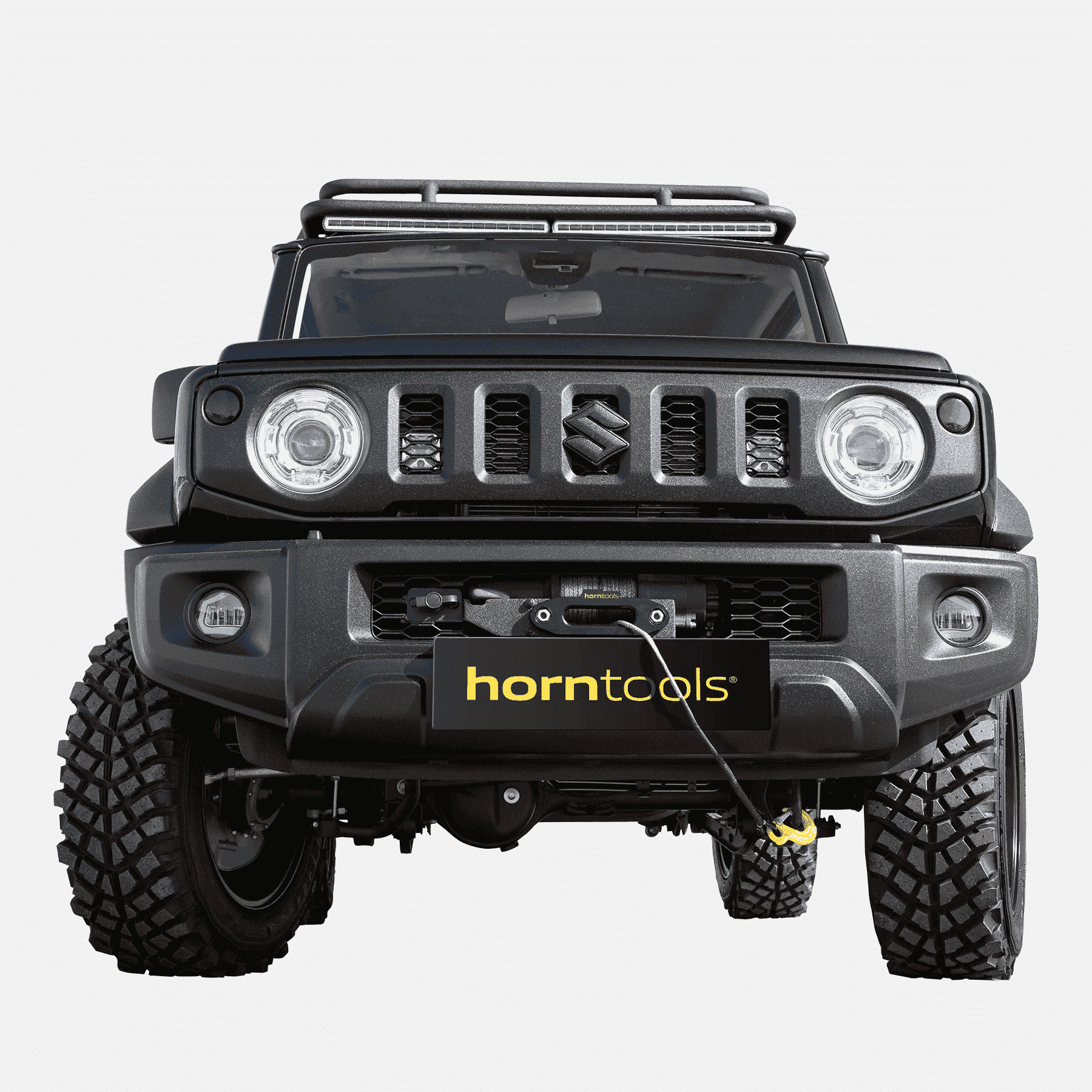

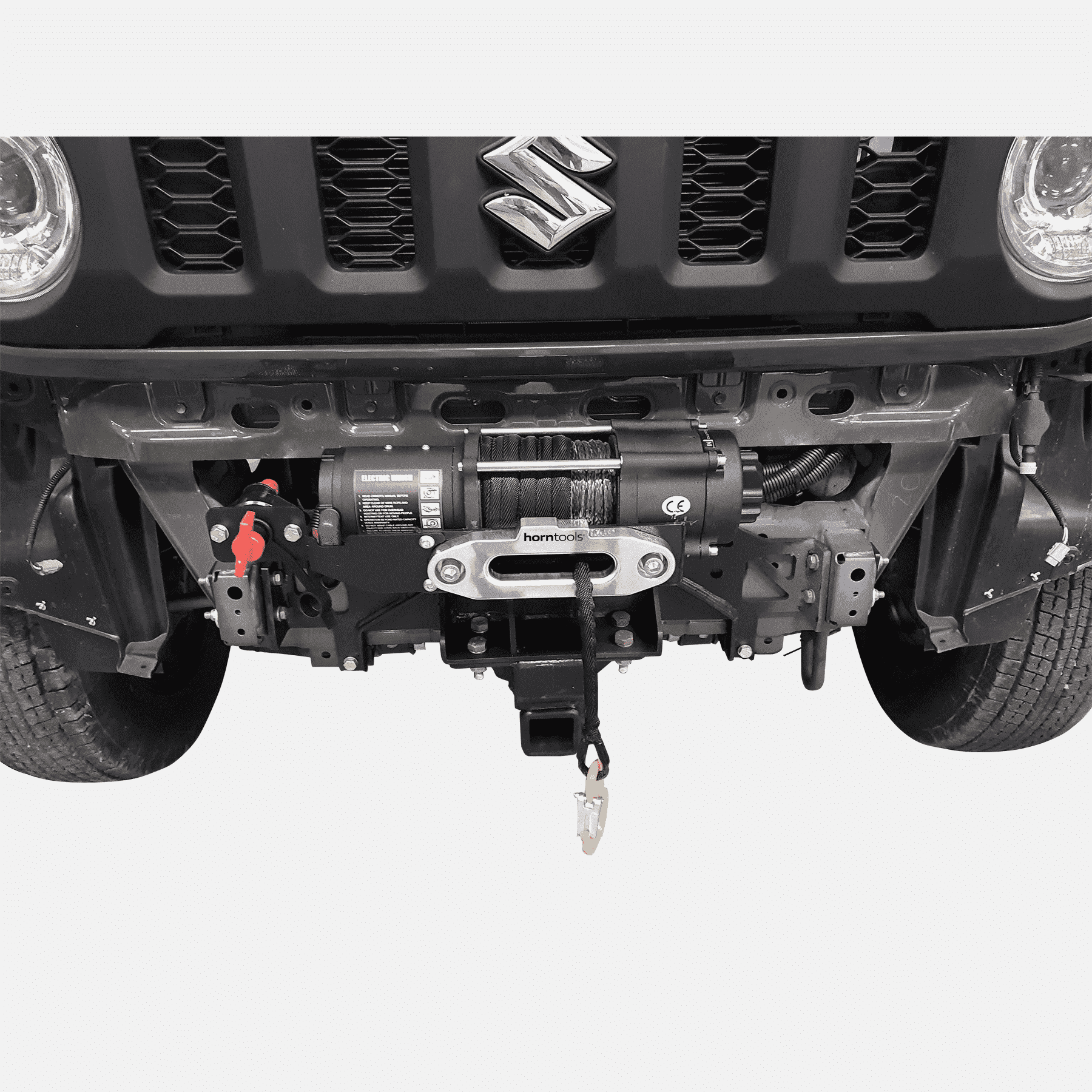

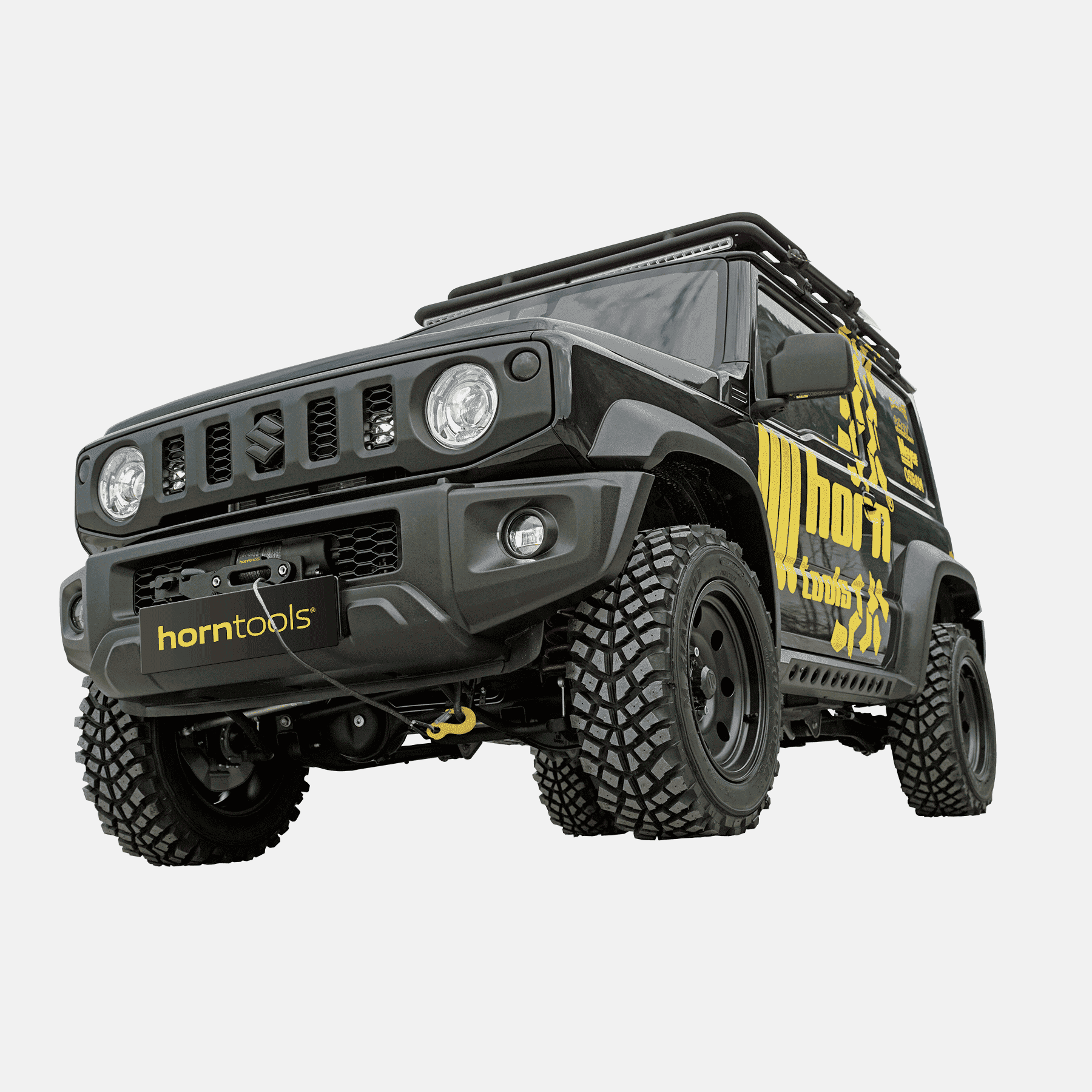

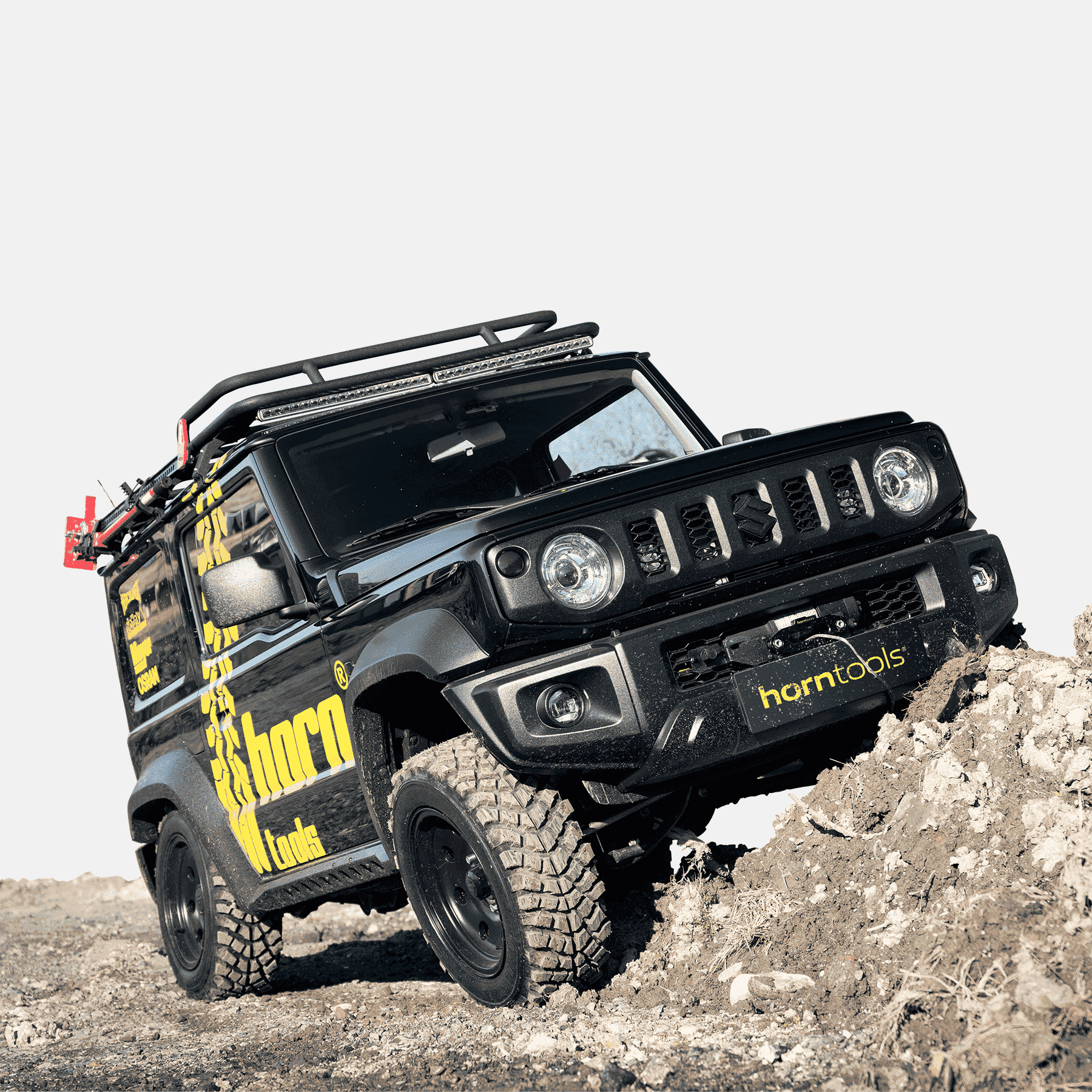

The winch system was developed specifically for the Suzuki Jimny and fits very well into its front. It is mounted at the original points on the vehicle. The Gamma 4.6 winch was specially developed for users who have limited space. Despite its compact design, the winch has a pulling force of 2 tons.

Characteristics:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing motor/gearbox
• Internal drum brake with 3 brake shoes
• Removable control unit (so that the control can be installed anywhere)
• Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal


Technical details:

• Gearbox: 3-stage planetary gearbox
• Max. pulling force: 2300 kg
• Max. pulling speed: 3 m/min*
• Engine power: 3.4 HP
• Motor type: Permanent magnet**
• Gear ratio: 166:1
• Max. power consumption: 220 amps
• Voltage: 12V
• Rope (∅ x length): 6 x 25 m
• Drum (∅ x length): 51 x 125 mm
• Overall size (LxWxH): 416 x 125 x 123 mm
• Weight of winch: 16.5 kg
• Installation time: 4 hours

* Measured without load
** Magnetic field is generated using a permanent magnet

Scope of delivery:

• Winch

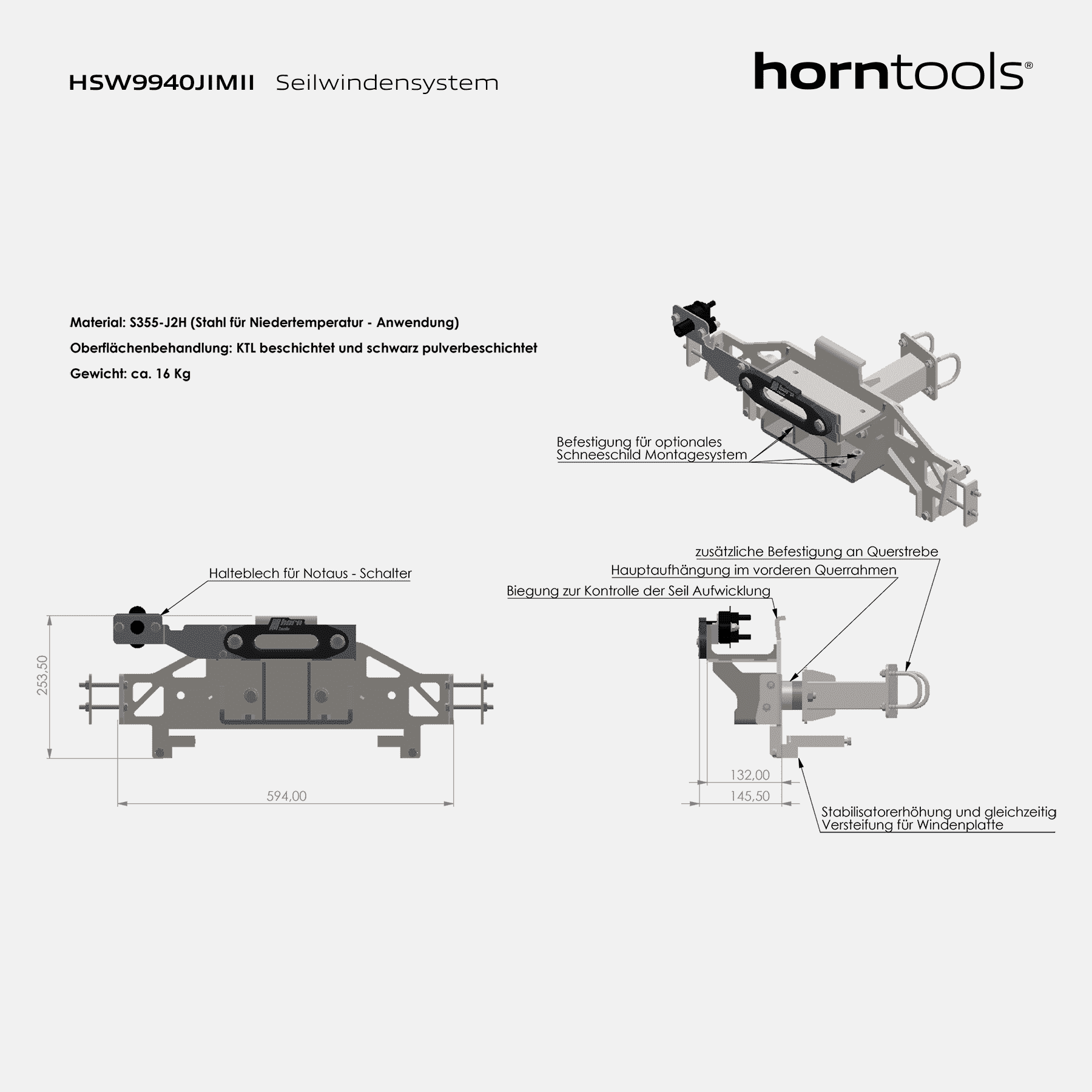

• Mounting plate with screws
• Aluminum cable window
• Fastening screws
• Synthetic rope with hooks
• Cable remote control
• Radio remote control
• Operation manual
• TÜV parts certificate

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer.

This winch can produce a higher level of noise.
No parts certificate is provided. An individual acceptance is necessary.
