4.3 ton Alpha Quick winch

Name: 4.3 ton Alpha Quick winch
Brand: Horntools
SKU: HSW9500-Q-12VDY_X
Price: 1099.0 EUR
Availability: InStock

1.099,00€

Tax included. Shipping calculated at checkout

SKU: HSW9500-Q-12VDY_X

GTIN: 9008683002305

Tension:

12V

Rope type:

Synthetic rope

Synthetic rope Steel cable

Variant

Quantity:

Developed in Austria
5 year guarantee
Free advice

Description

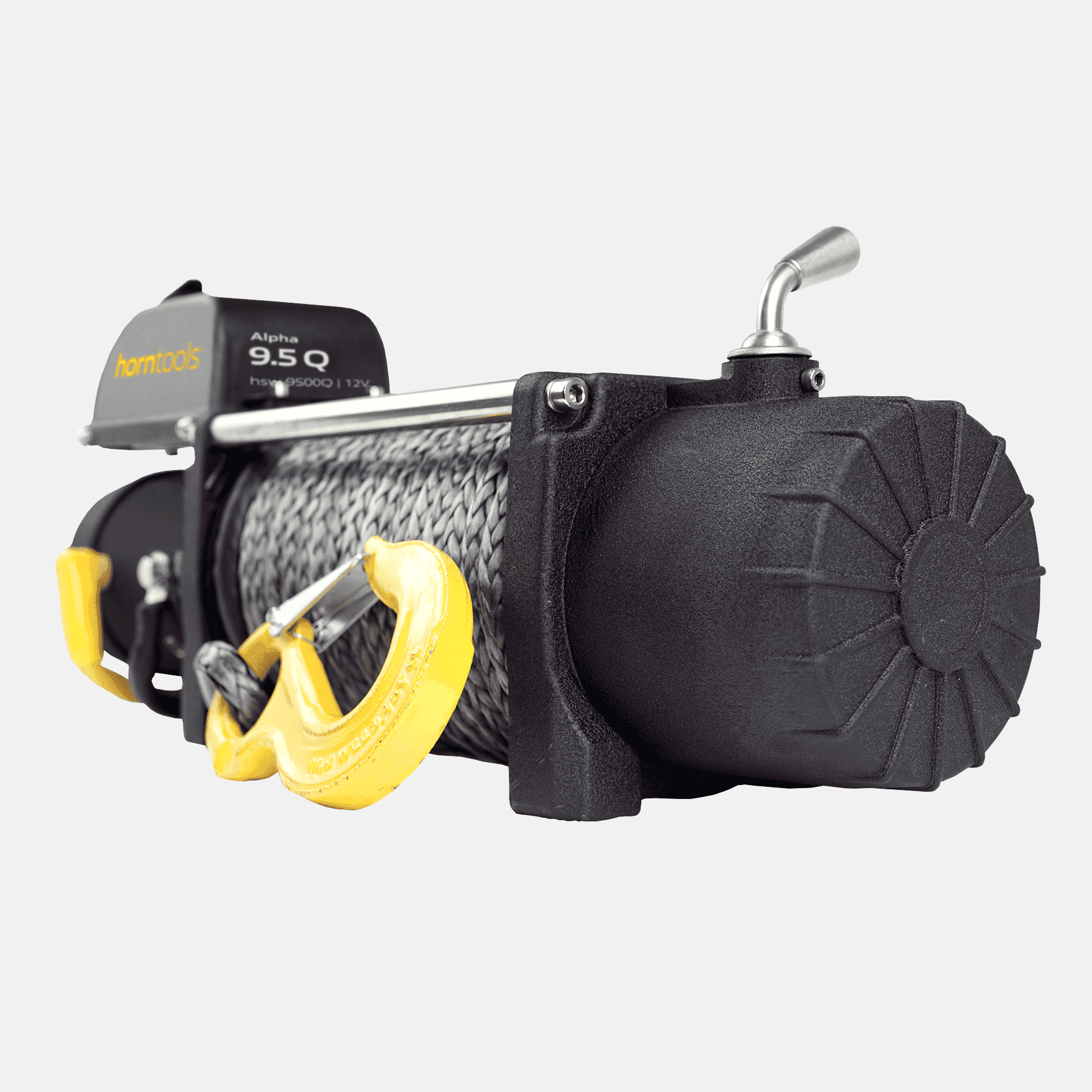

The Alpha 9.5 series is one of the most popular winches among our customers. They are versatile, have a low weight and a compact design.
This makes them ideal for vehicles such as the Ford Ranger, Land Rover Defender or Mitsubishi L200.

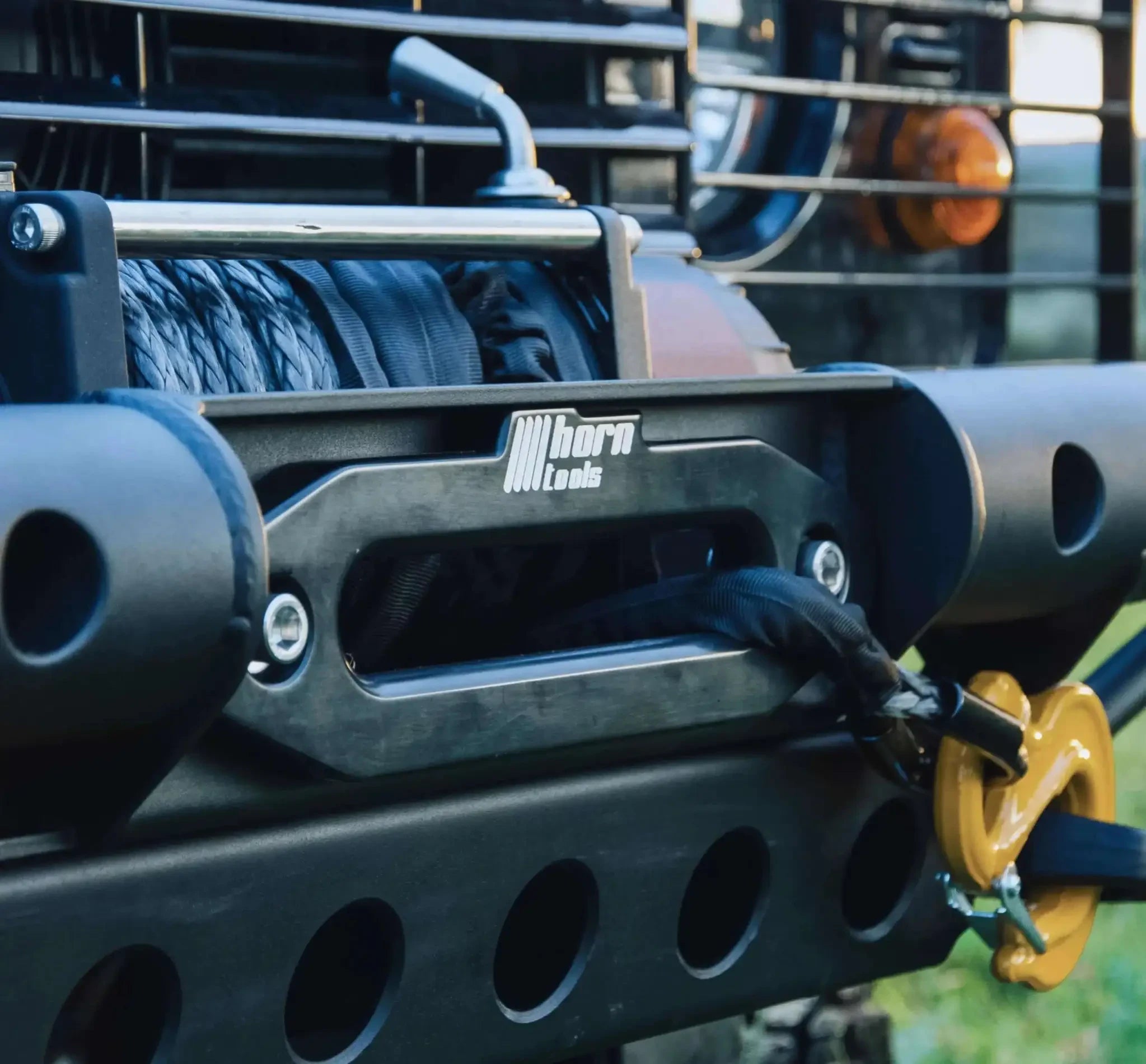

The Alpha 9.5 winch from horntools can be used in a variety of ways on your vehicle. It can be used both as a front winch, installed or directly on the bumper, and as a rear winch on a trailer hitch or on a suitable carrier on the loading area. When ordering, please make sure you select the appropriate winch for the intended use.

The special thing about the Quick models of the Alpha series is the extremely high maximum pulling speed of 15 m/min (measured without load). This allows you to pull your loads or other items out of the mud or onto the loading area even faster.

Particularities:

Motor IP67 sealed by groove with sealing ring
Freewheel lever
Stainless steel crossbars
Reinforced rope drum
Powder-coated aluminum die-cast housing motor/gearbox
Internal drum brake with 3 brake shoes

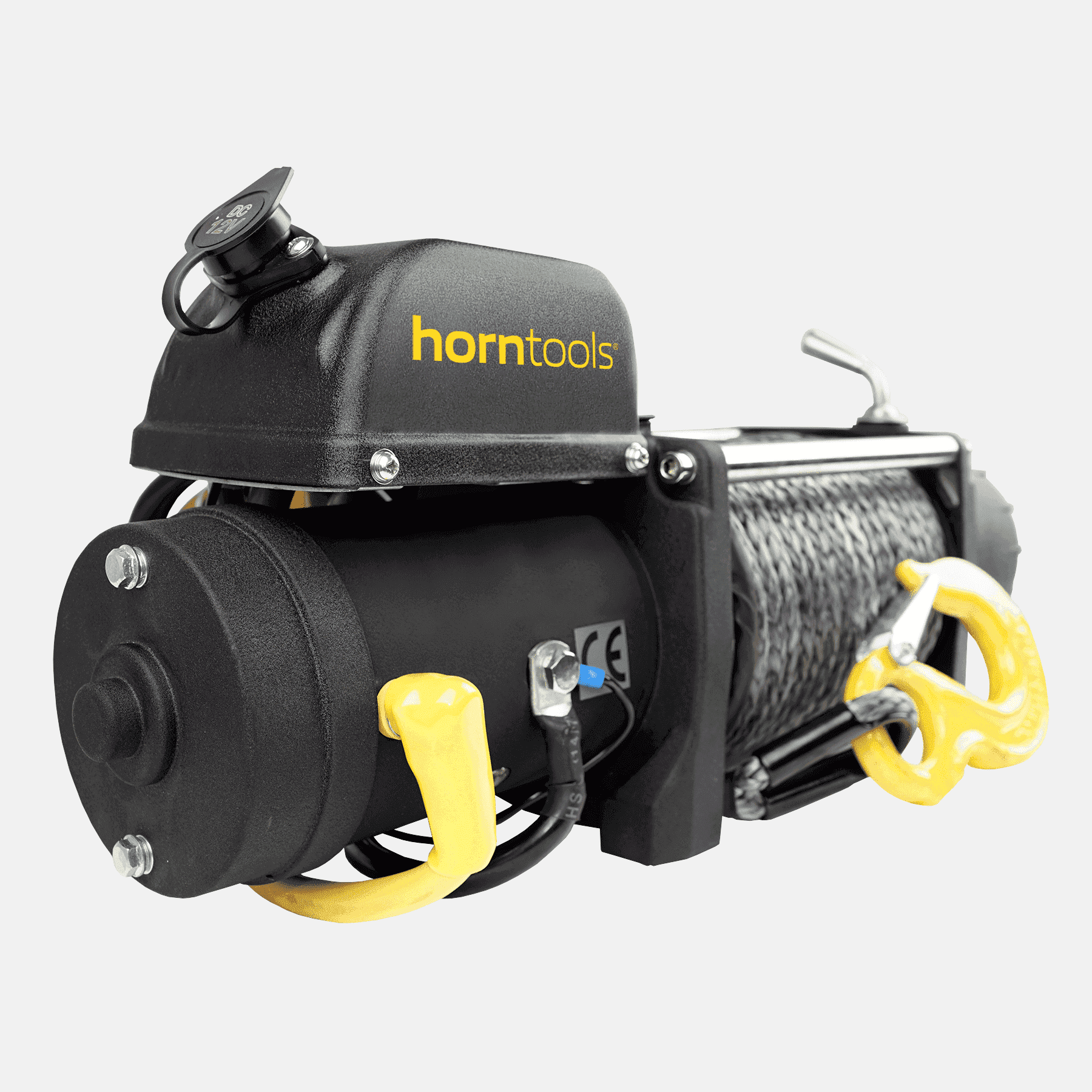

Removable control unit (so that the control can be installed anywhere)
Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

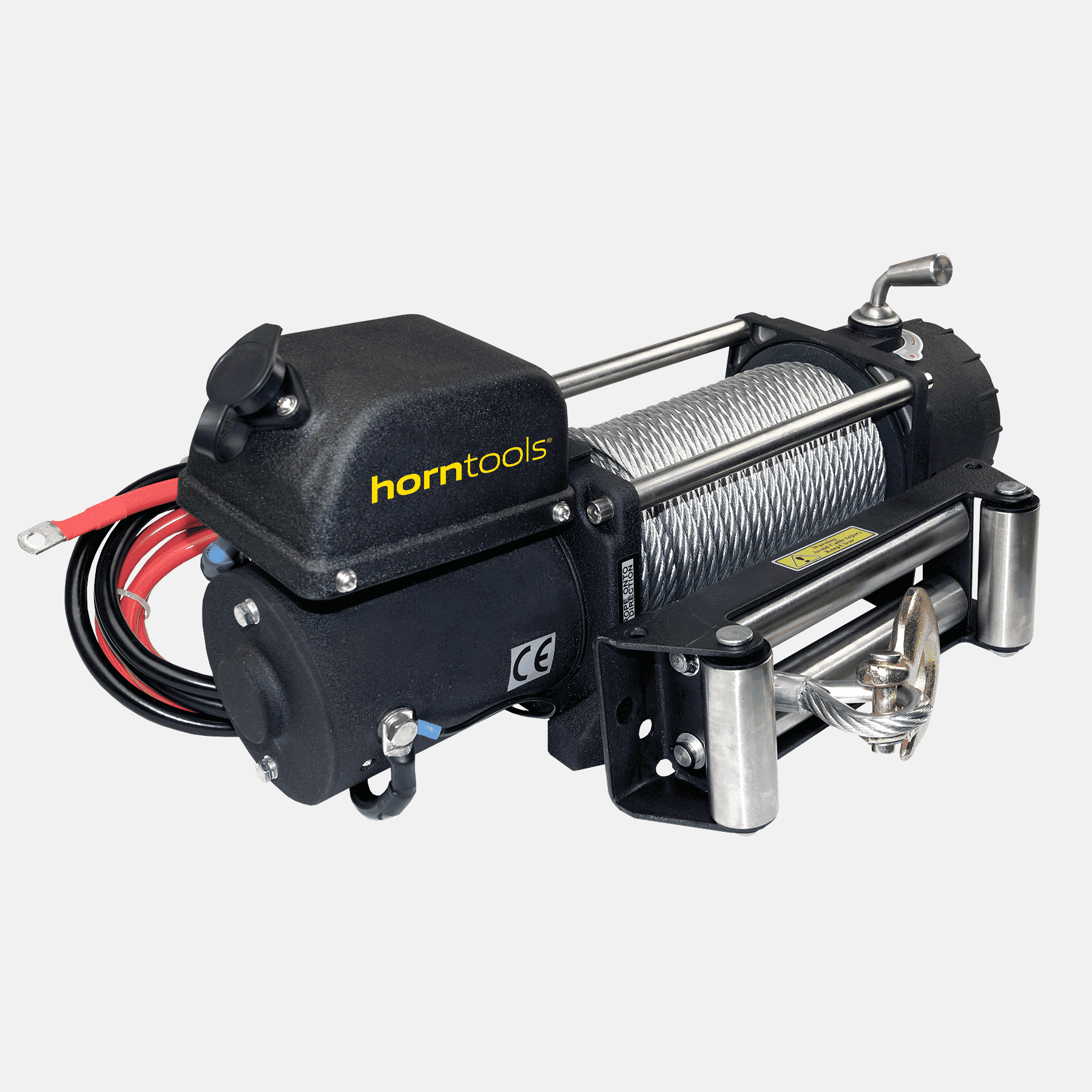

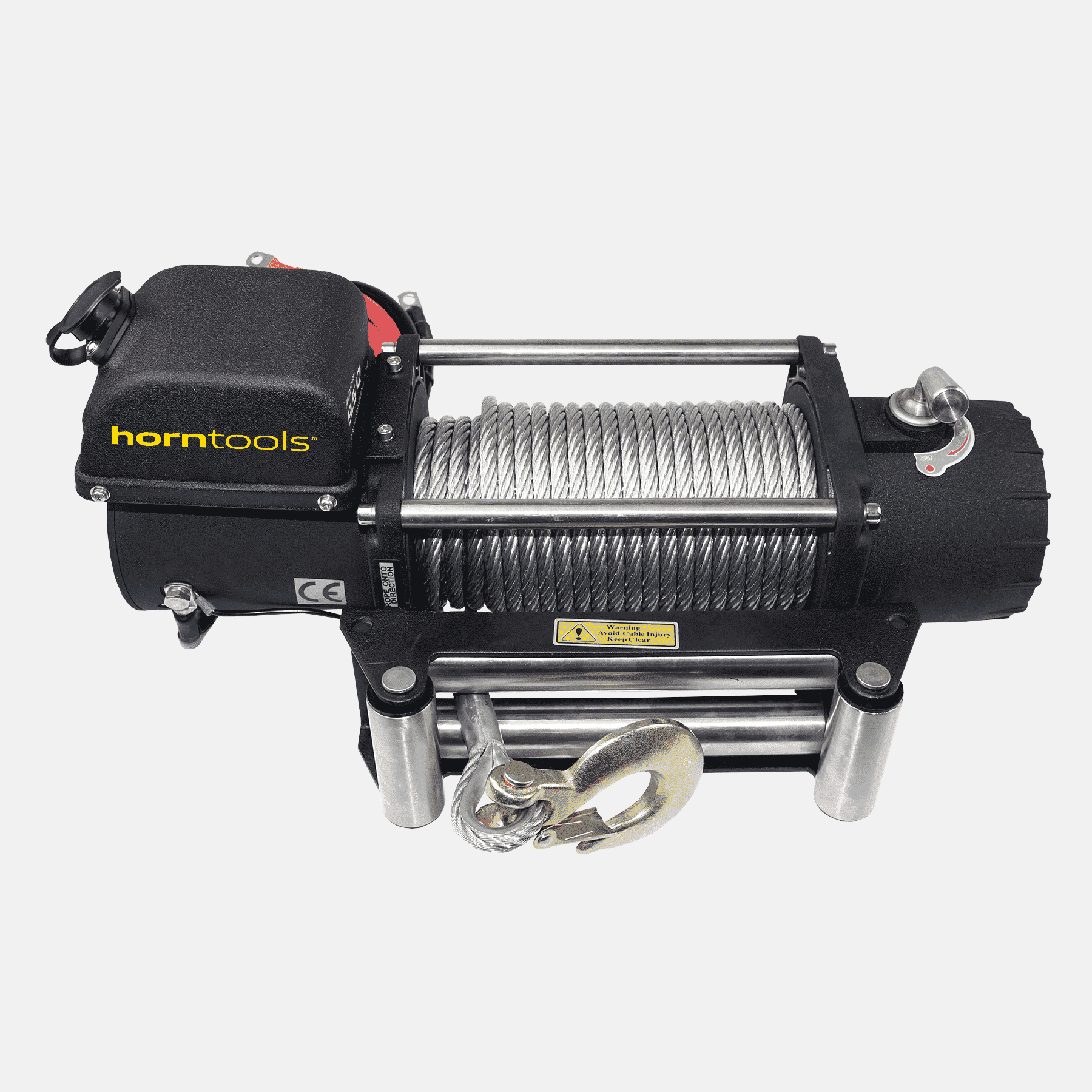

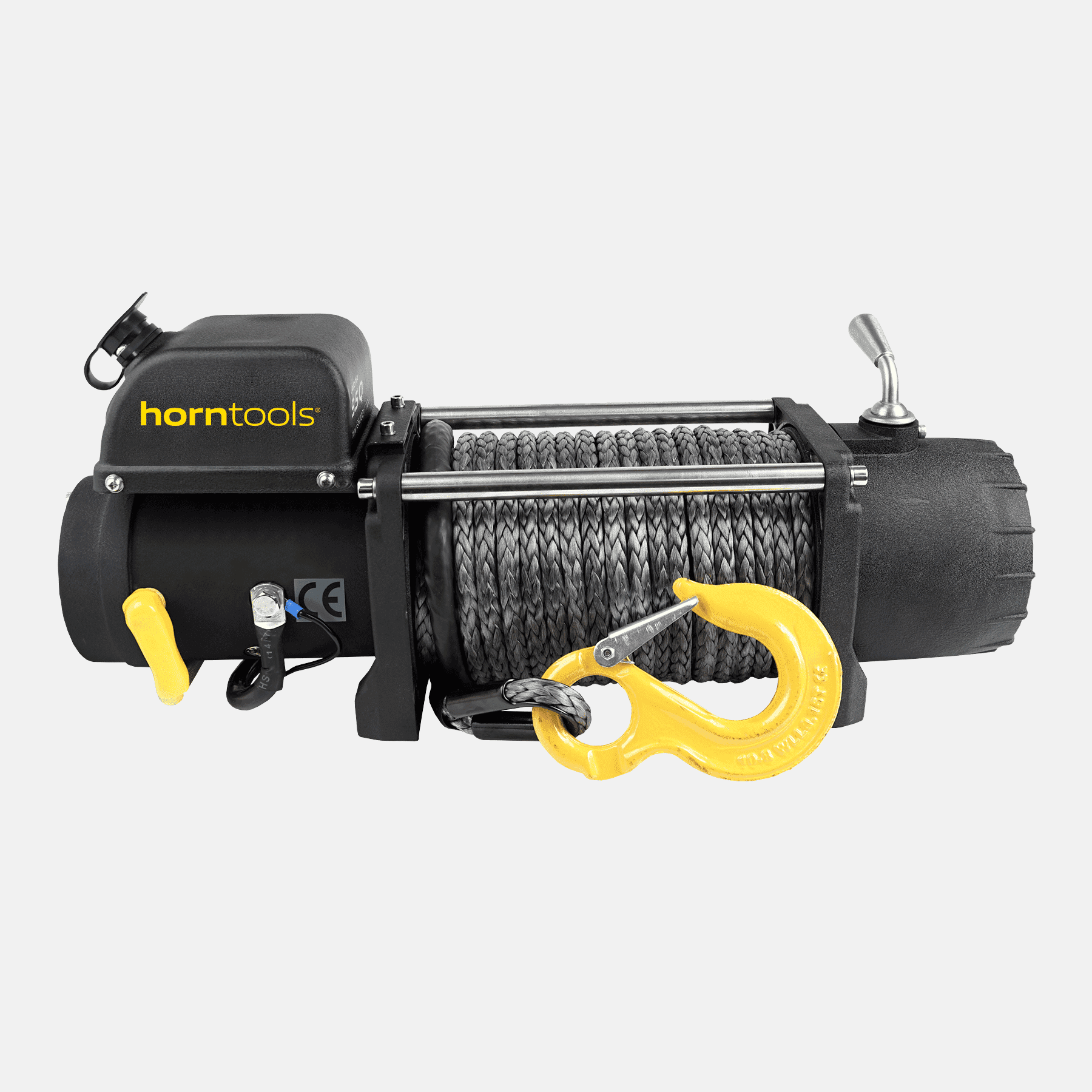

Winch
Aluminum cable window/roller cable window
Fastening screws

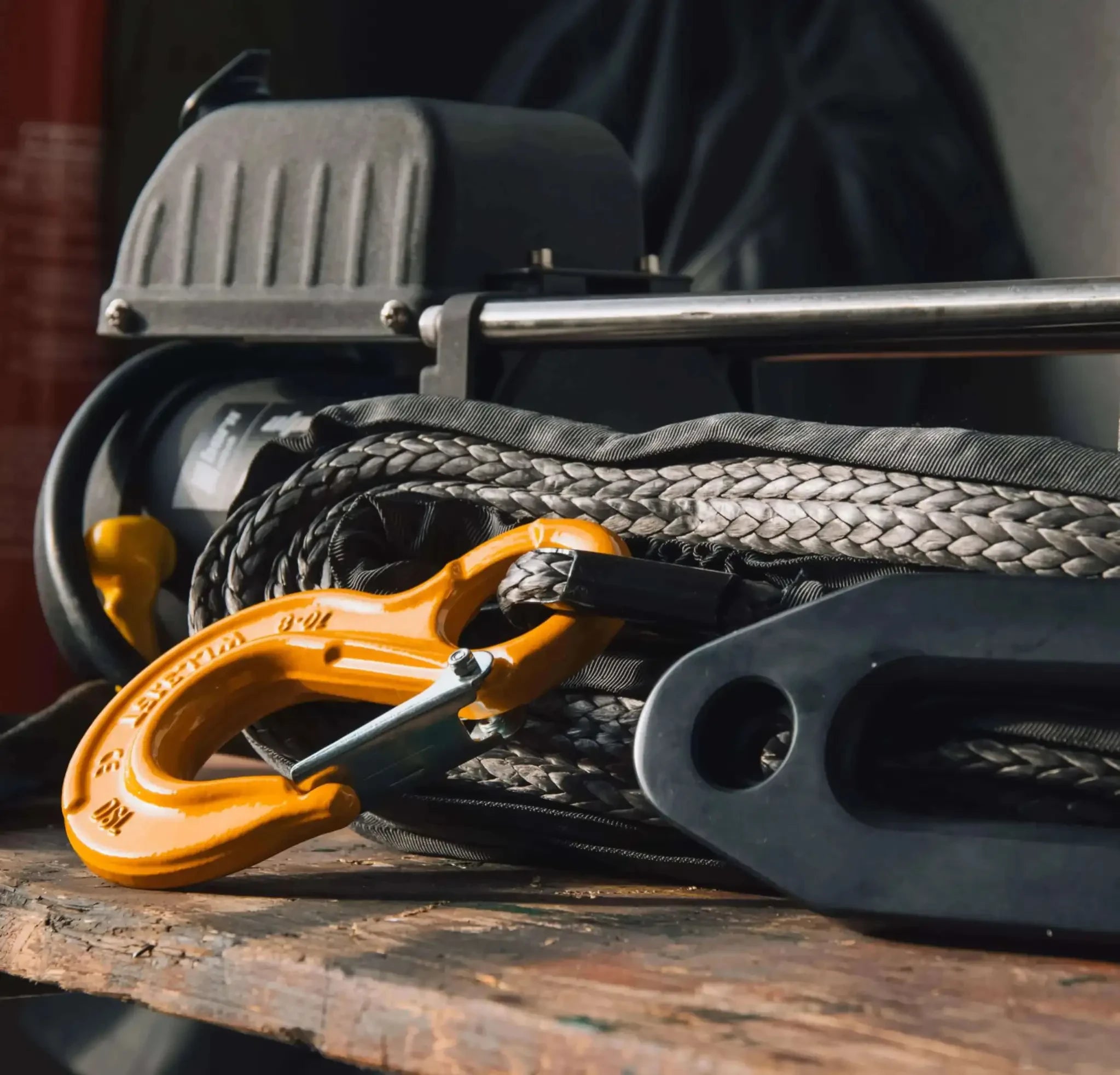

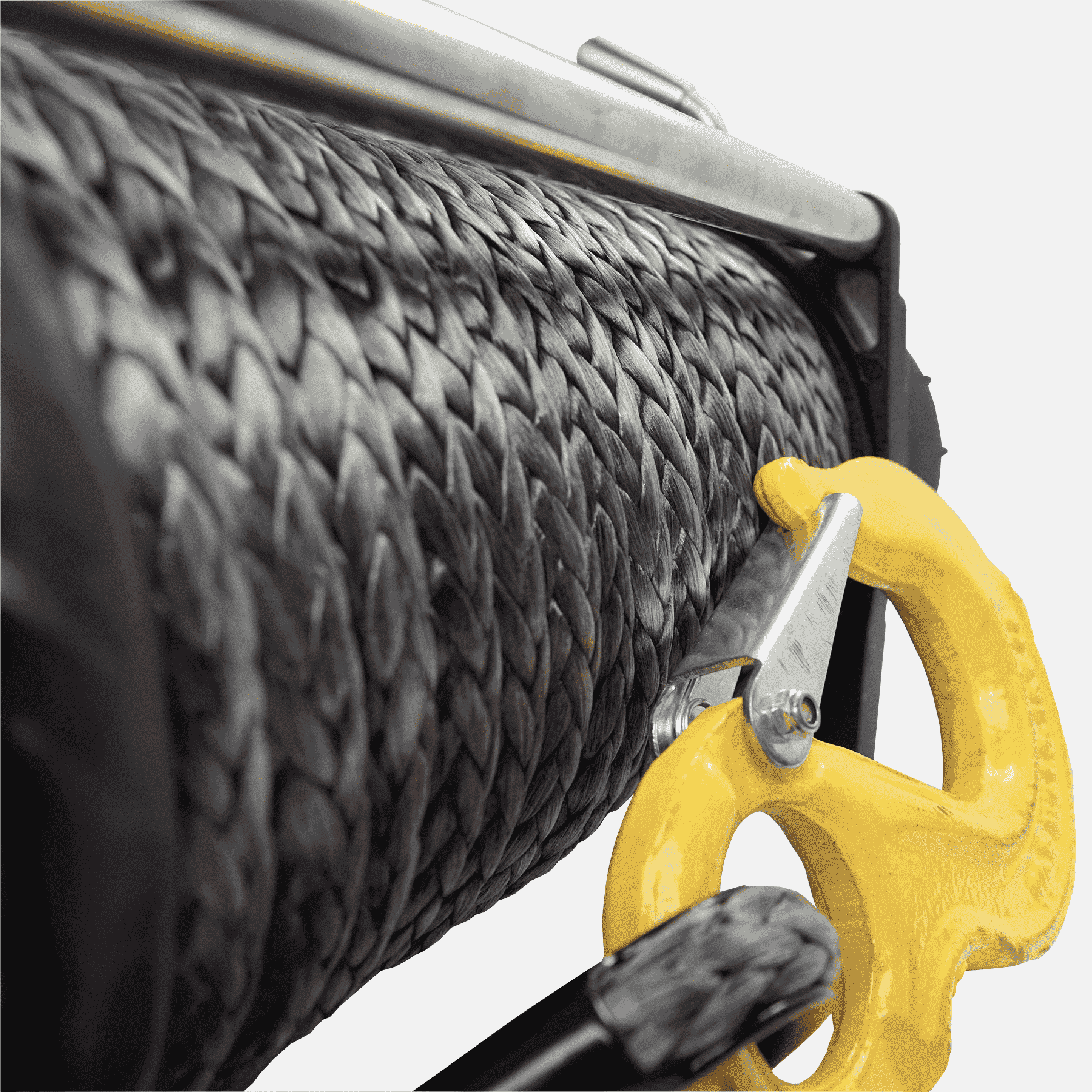

Synthetic rope with hook/steel rope
Cable remote control
Radio remote control
Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.

FAQ & Download

Downloads

User Guide

Technical data

12 Volt:

Gearbox: 3-stage planetary gearbox
Max. tractive force: 4300 kg
Max. pulling speed: 15 m/min* Weight: 29.1 kg
Weight: 29.1 kg
Motor type: Series Wound**
Reduction ratio: 110:1
Max. power consumption: 530 amps
Voltage: 12 V
Steel cable (∅ x length): 9.2 mm x 26 m
Synthetic rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm

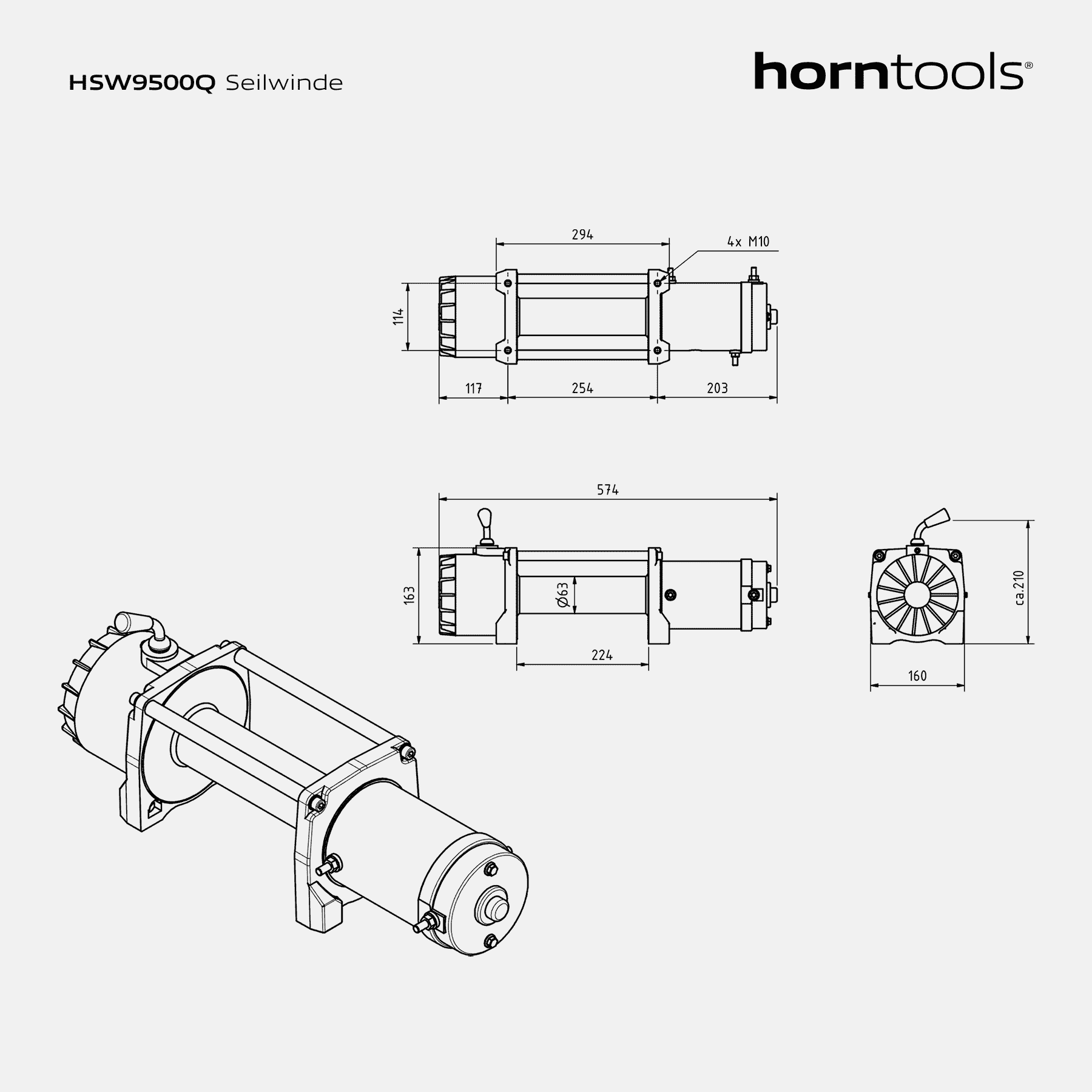

Overall size (LxWxH): 574 x 160 x 225 mm
Cable cross-section: 50 mm²
Cable length: 180 cm

24 Volt:

Gearbox: 3-stage planetary gearbox
Max. tractive force: 4300 kg
Max. pulling speed: 15 m/min*
Motor type: Series Wound**
Reduction ratio: 110:1
Max. power consumption: 480 amps
Voltage: 24 V
Steel cable (∅ x length): 9.2 mm x 26 m
Synthetic rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm
Overall size (LxWxH): 574 x 160 x 225 mm
Weight: 29.1 kg
Cable cross-section: 50 mm²
Cable length: 180 cm

* measured without load
** magnetic field is generated electrically
