10-32 V
105 W
7150 lm
IP68/69K
Sale price269,90 € Regular price304,90 €
Save 35,00 €

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
GTIN: 7323030194185SKU: 809412A

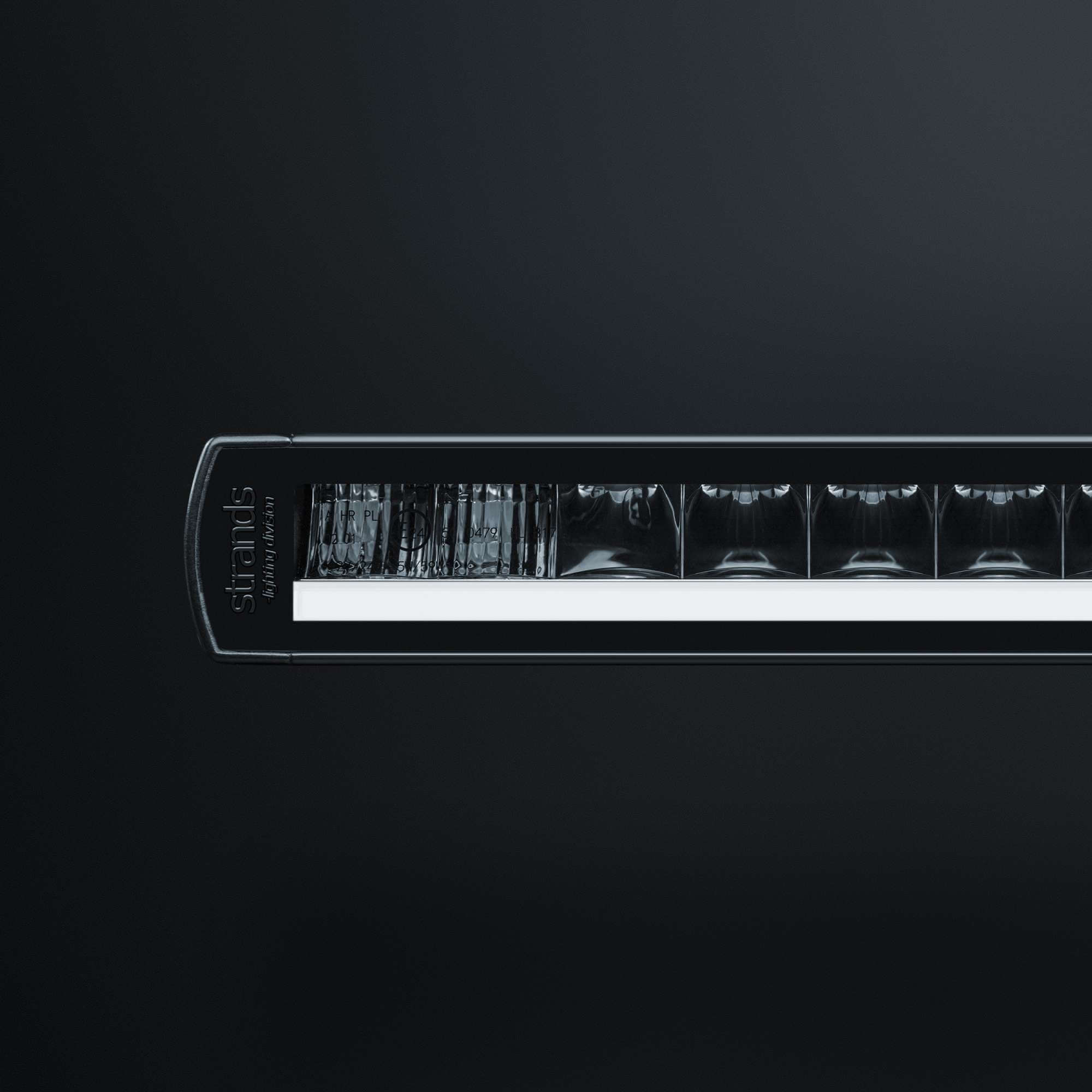

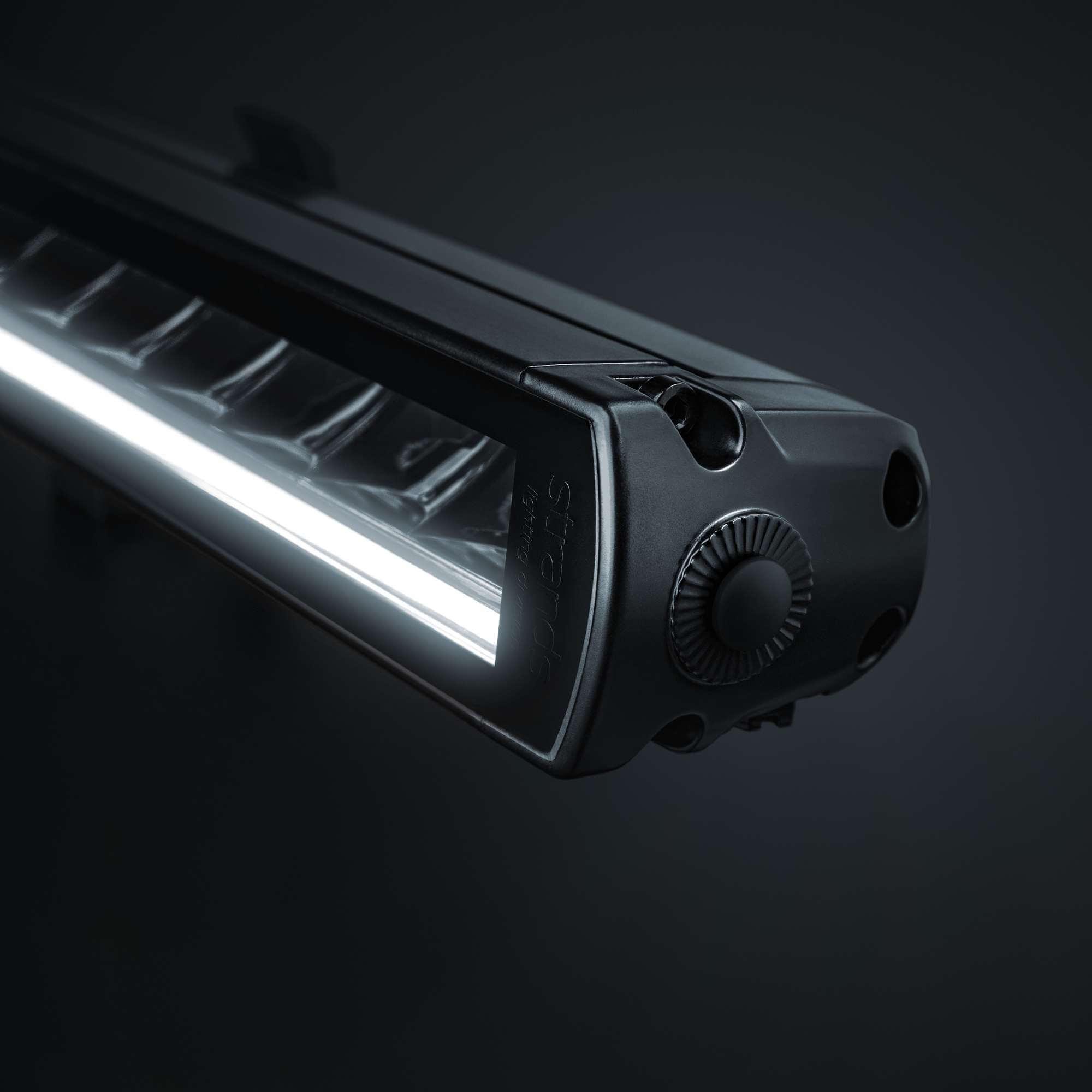

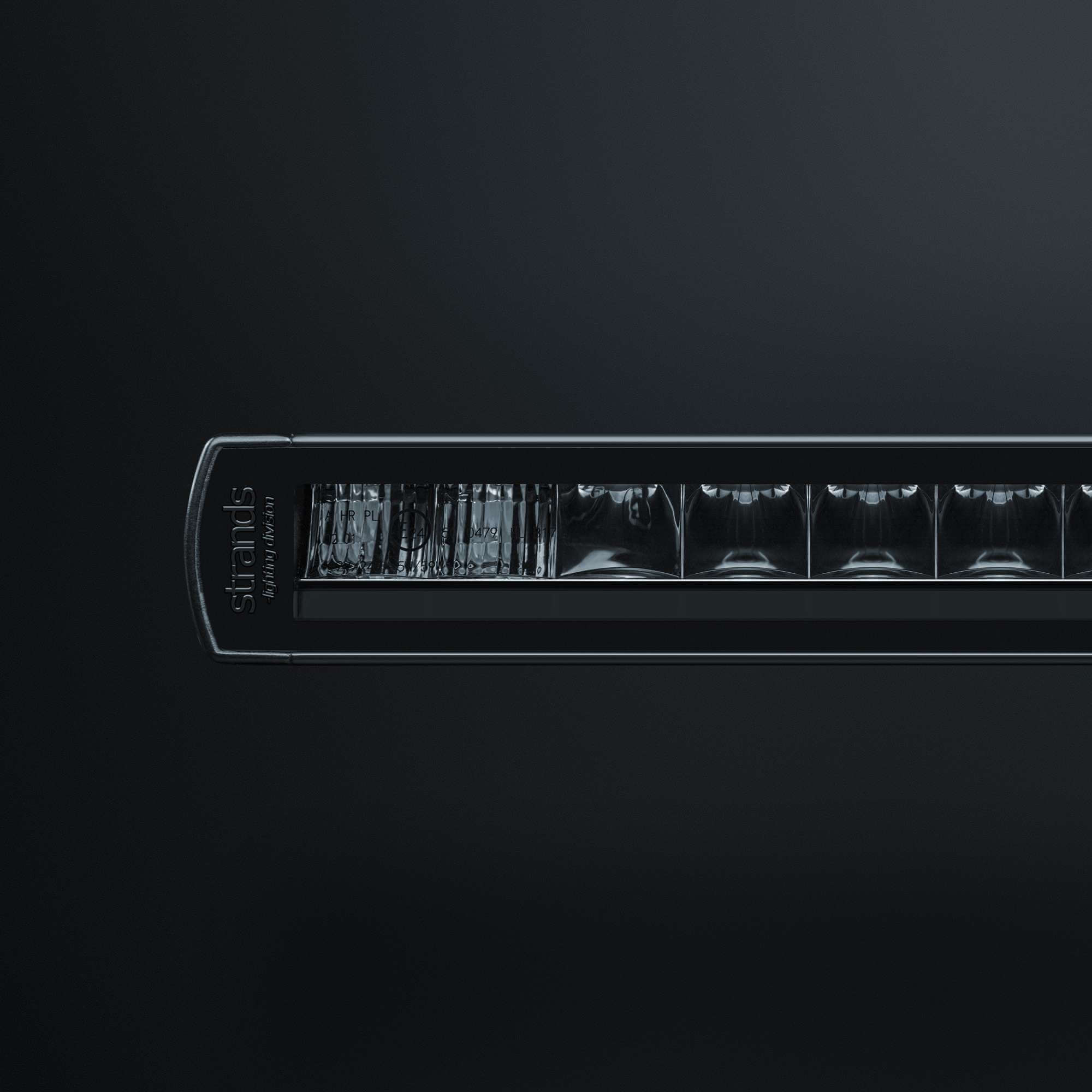

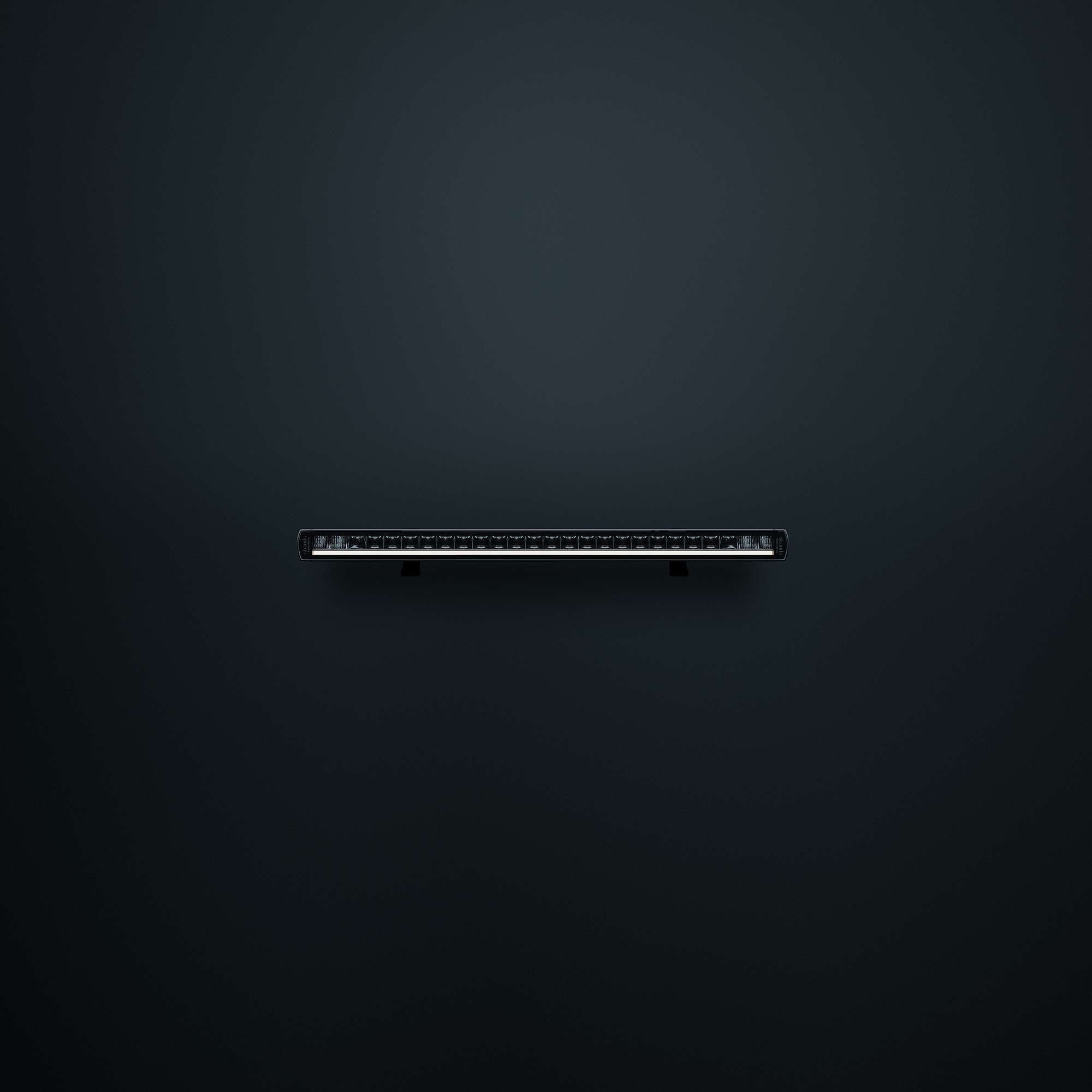

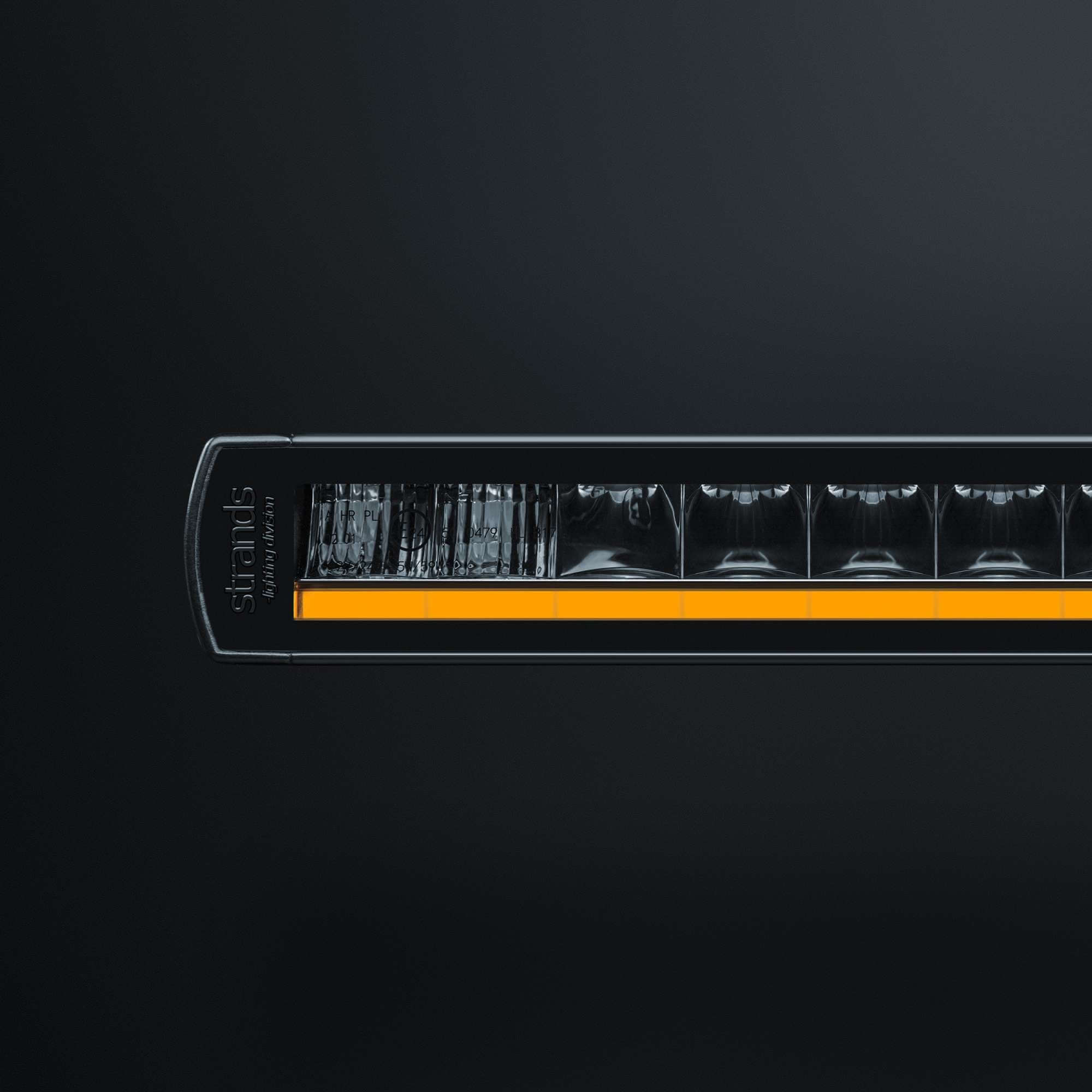

The Siberia XPA SR LED Bar 22" combines powerful performance with a modern design and a dual-color position light in white and amber. It provides clear illumination while giving your vehicle a distinctive look.

In Xperience mode, it delivers over 7,100 lumens and reaches a distance of more than 600 meters – around 65% more performance compared to previous models. The optimized beam pattern ensures excellent forward visibility, while the 5700 K color temperature offers bright and crisp lighting.

A special highlight is the integrated Hello function: by flashing your high beam twice, a dynamic signal is activated via the position lights.

Durable materials, a robust lens, and a solid housing make the LED bar highly resistant to vibrations and demanding conditions. With an IP68/IP69K rating, it is optimally protected against water and dirt.

Installation is simple via a 550 mm cable with a DT-4 connector. The LED bar is E-approved according to ECE R148 (R7), R149 (R112), and ECE R10, making it road-legal.

As with all Strands products, you also benefit from a 3-year warranty.

Unit
PCS
Voltage (DC) (V DC)
10-32
Theoretical effect (W)
102
Consumption (W)
105
Functions
Xperience modeE-approved modeWhite Pos.Amber Pos.Hello function
Consumption specific function
X-mode 102WE-mode 25WWhite pos. 9.5WAmber pos. 9.5W
Theoretical lumen (lm)
8000
Actual lumen (lm)
7150

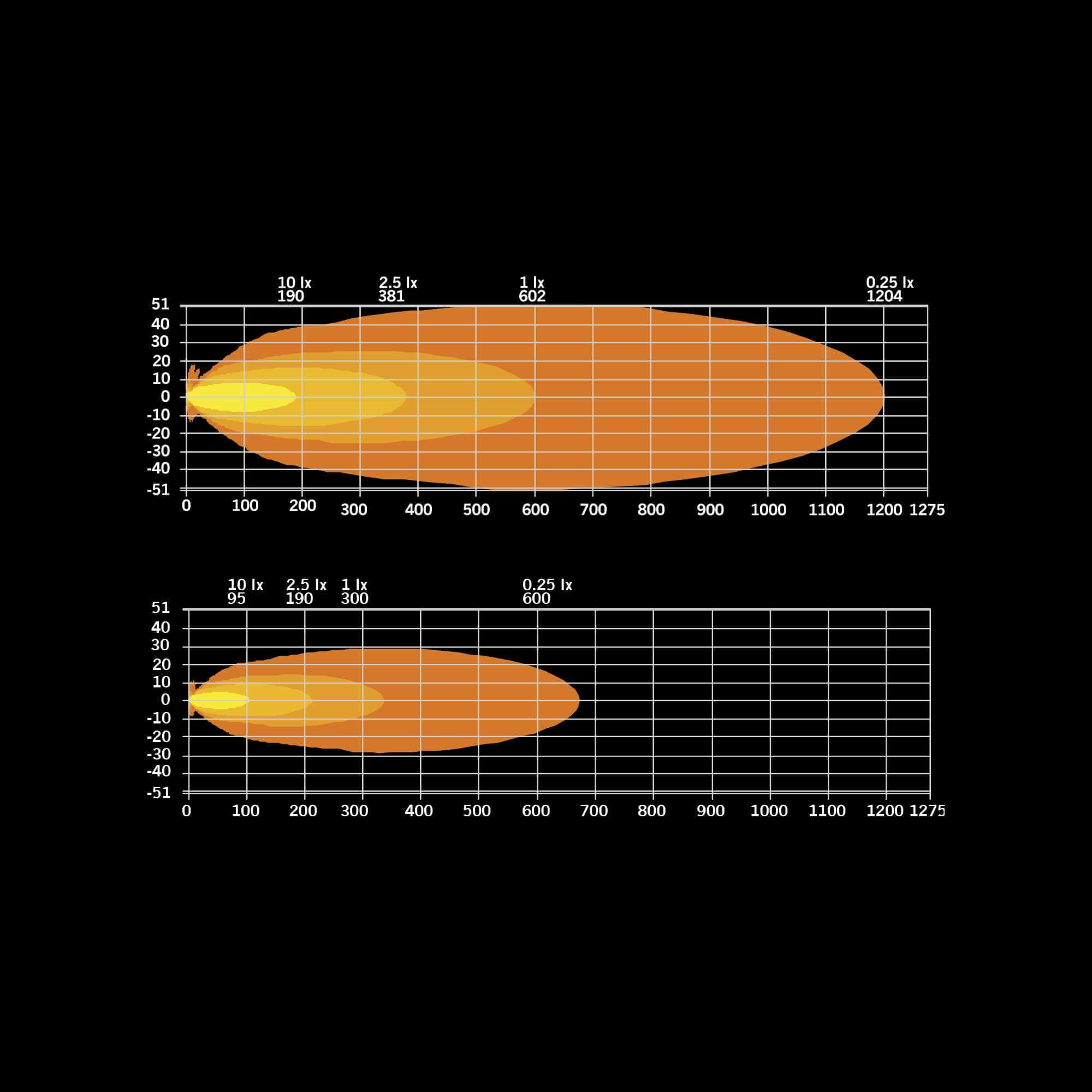

1 lux @ (m)
602
Color temperature (K)
5700
Beam pattern
Extended Beam
Beam angle (°)
14.4
Connection
DT-4PIN
Cable length (mm)
550
Color housing
Black
Color lens
Clear
Color LED's
White | Amber

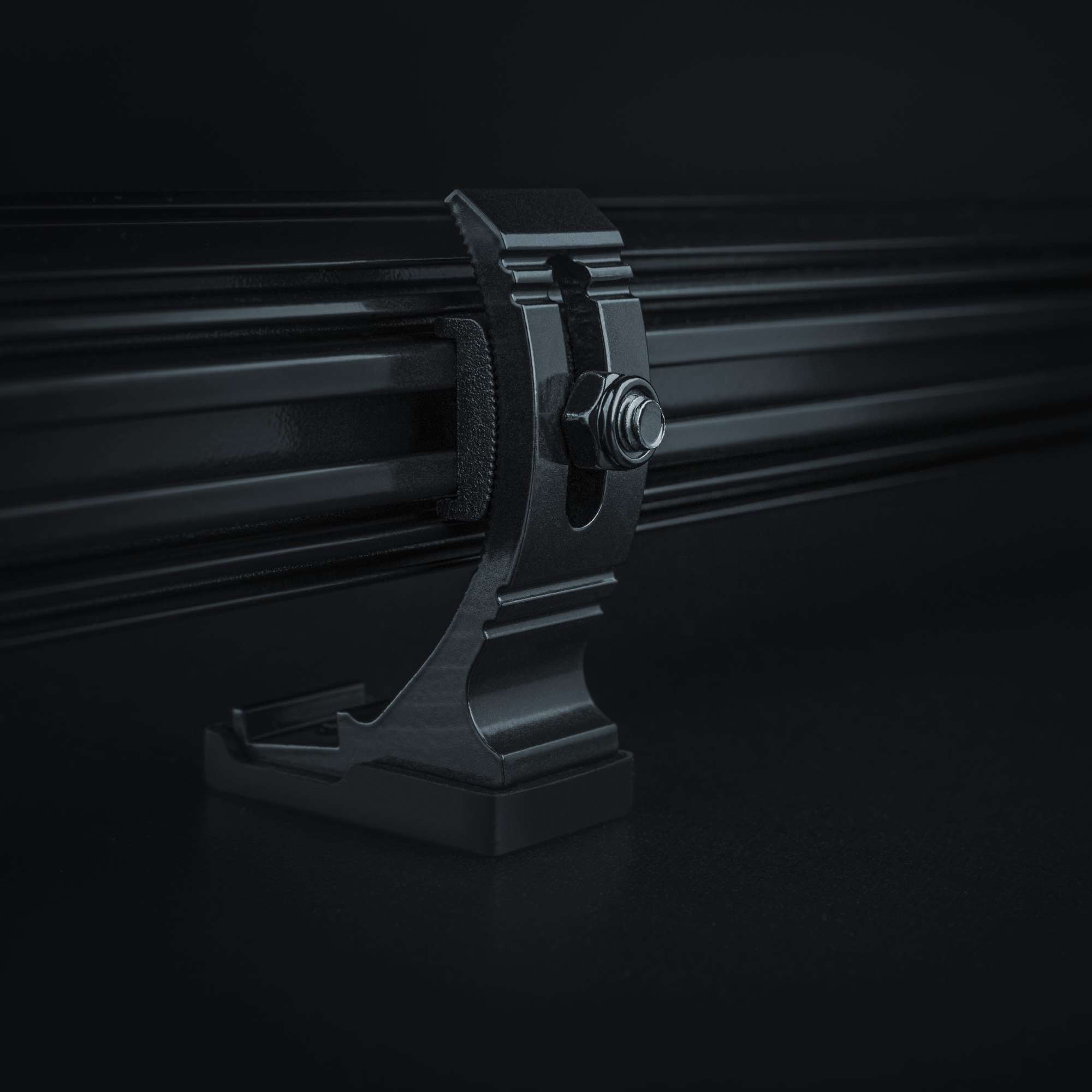

Material bracket
Aluminum alloy
Material housing/chassi
Aluminum
Material lens
Polycarbonate

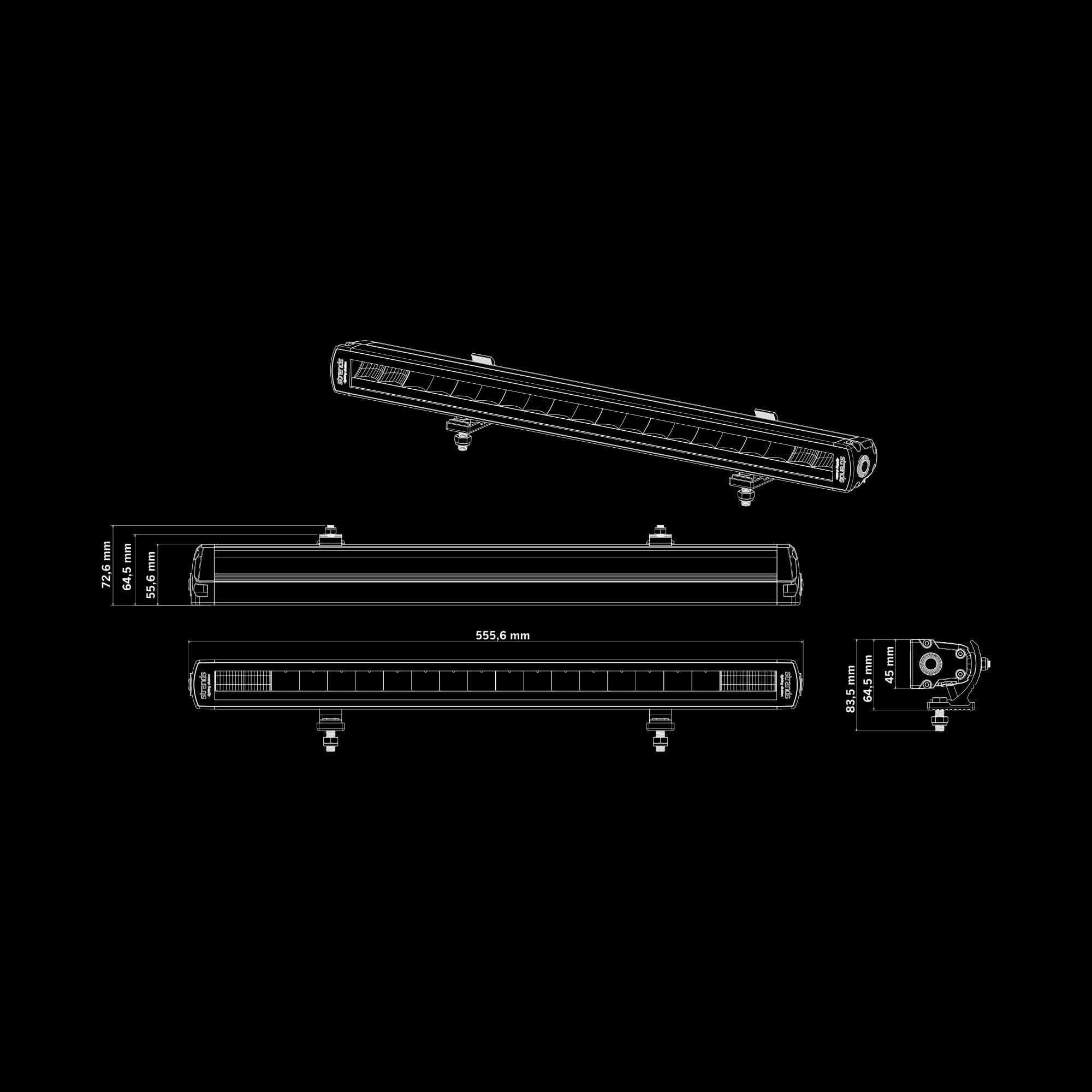

Length (mm)
555.6
Depth (mm)
55.5
Height (mm)
45
Height including bracket (mm)
64.5
Weight (kg)
1.8
IP-class
IP68/69K
Operating temperature (°C)
-35 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
+ (Positive) white position light
Yellow
(+) Amber position light
Manual Product sheet
