Strands SIBERIA XP DR LED BAR 22″

10-32
13050
IP68/69K
Sale price371,90 €

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands SIBERIA XP DR LED BAR 22″ – Video

GTIN: 7323030192730SKU: 809427

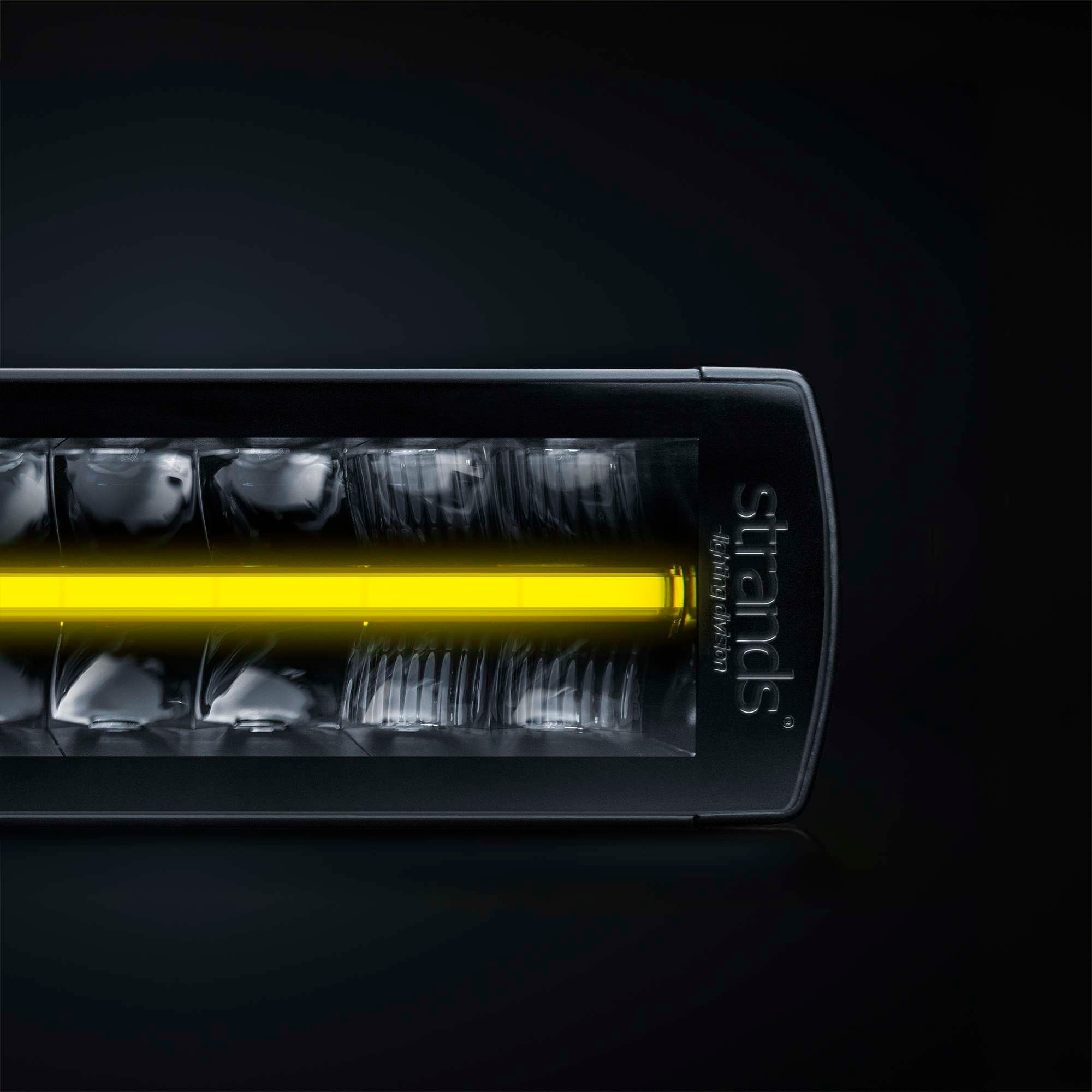

The Strands Siberia XP Single Row LED auxiliary light stands for powerful light output and precise illumination over long distances. The slim design of the Strands lightbar combines a focused long-range beam pattern with modern LED technology and is ideal for off-road use and long night drives.

The 42-inch model delivers 1,500 lumens in E-mode and a powerful 14,760 lumens in Xperience mode – making this Strands LED auxiliary light significantly more powerful than the previous generation. With a range of up to 858 meters and a color temperature of 5,700 Kelvin, it creates a clear, high-contrast light image for maximum forward visibility.

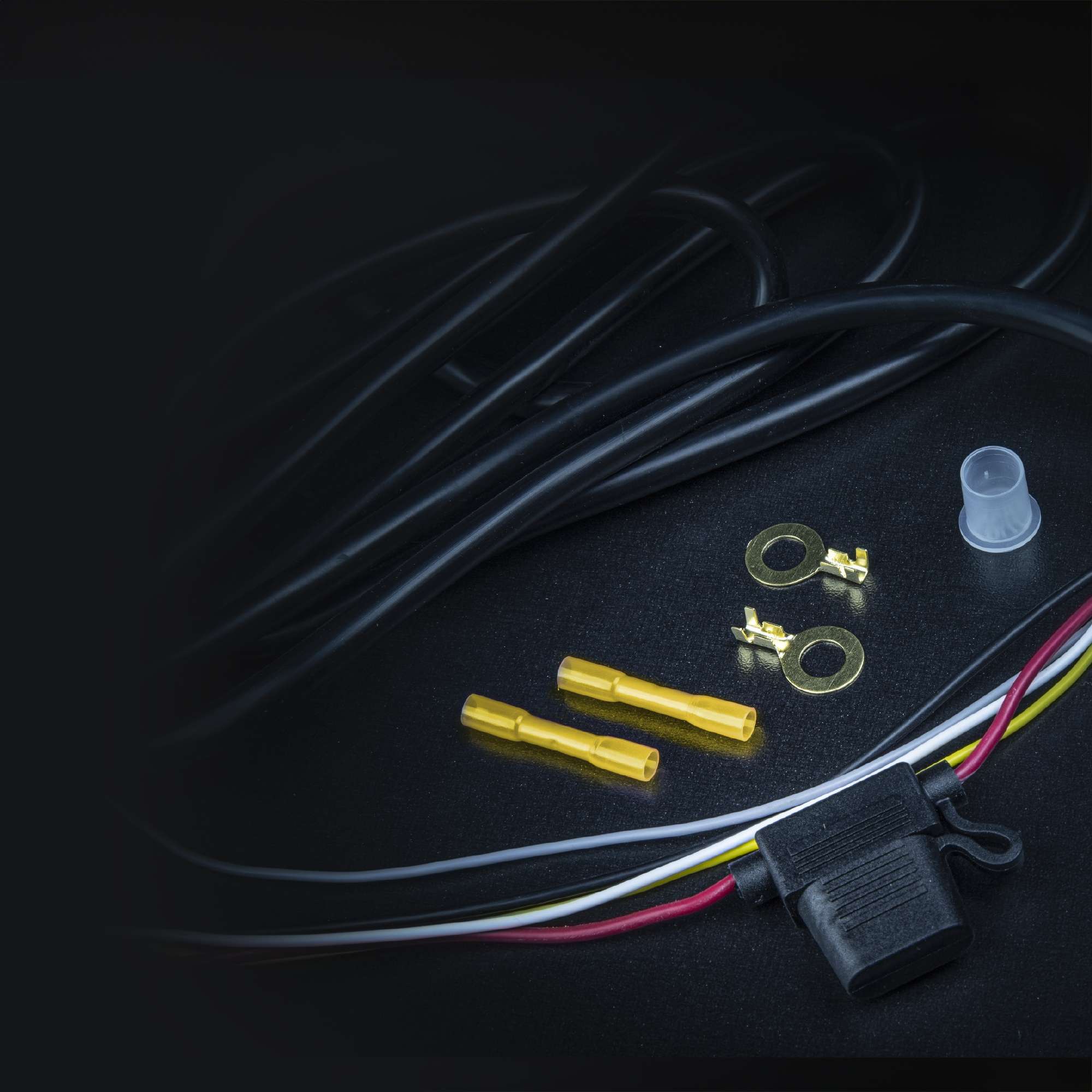

Thanks to an integrated relay and 2,500 mm cable, the Strands LED lightbar can be installed quickly and easily. The robust design is built for harsh conditions and reliably withstands vibrations, dirt, and water (IP68/IP69K). Developed by Strands Lighting Division and backed by a 3-year functional warranty, the auxiliary light meets all relevant ECE standards, making it a reliable solution for both road and off-road use.

Unit
PCS
Voltage (DC)
10-32
Functions
Xperience modeE-approved modeWhite pos.Yellow pos.Hello function
Consumption specific function
X-mode 184WE-mode 19WWhite pos. 17WYellow pos. 17W
Theoretical lumen
14000
Actual lumen
13050
1 lux @
853
Color temperature
5700
Beam pattern
High Beam
Beam angle
12.7
Connection
Cable
Cable length
2500
Color housing
Black
Color lens
Clear
Color LED's
White | Yellow

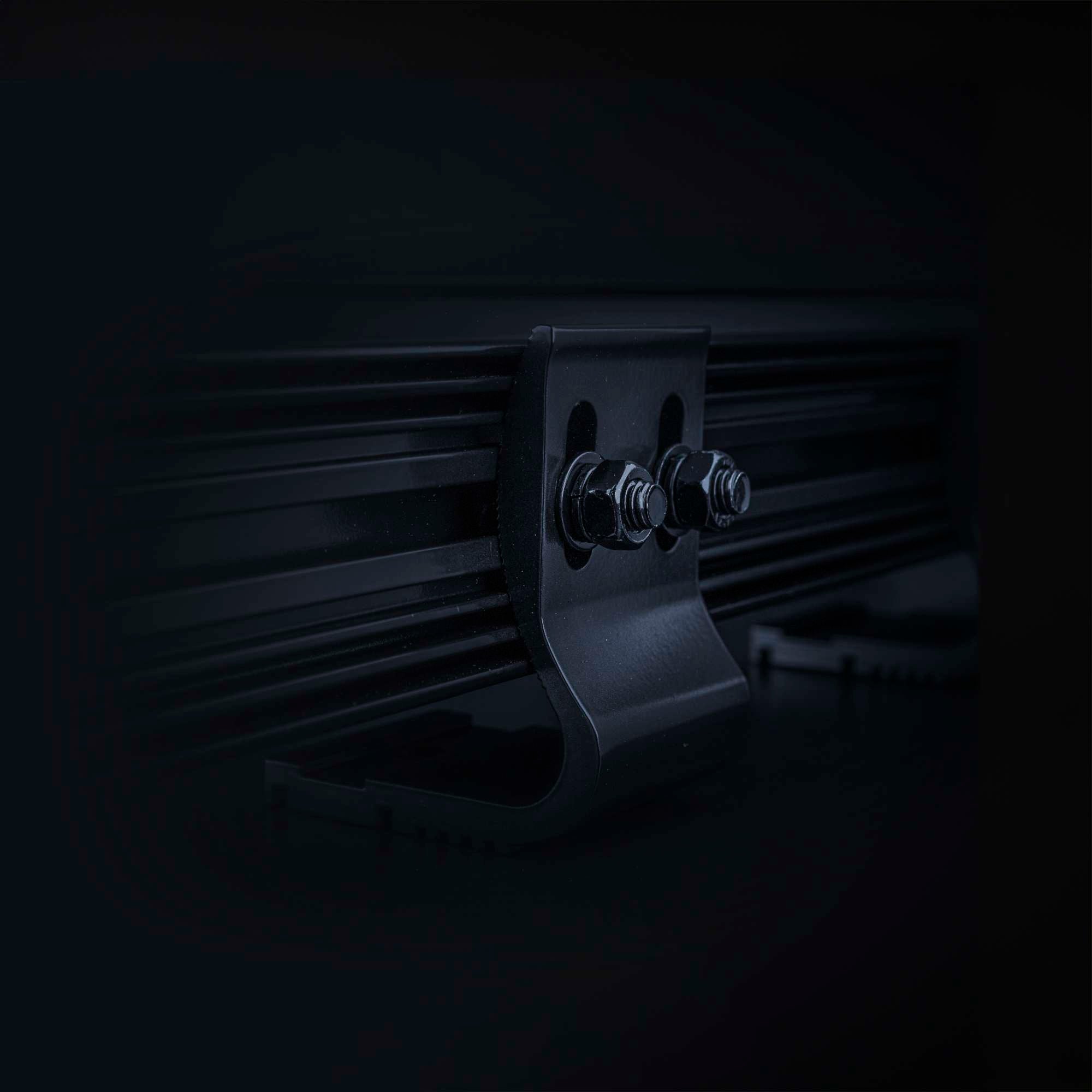

Material bracket
Aluminum
Material housing/chassi
Aluminum
Material lens
Polycarbonate

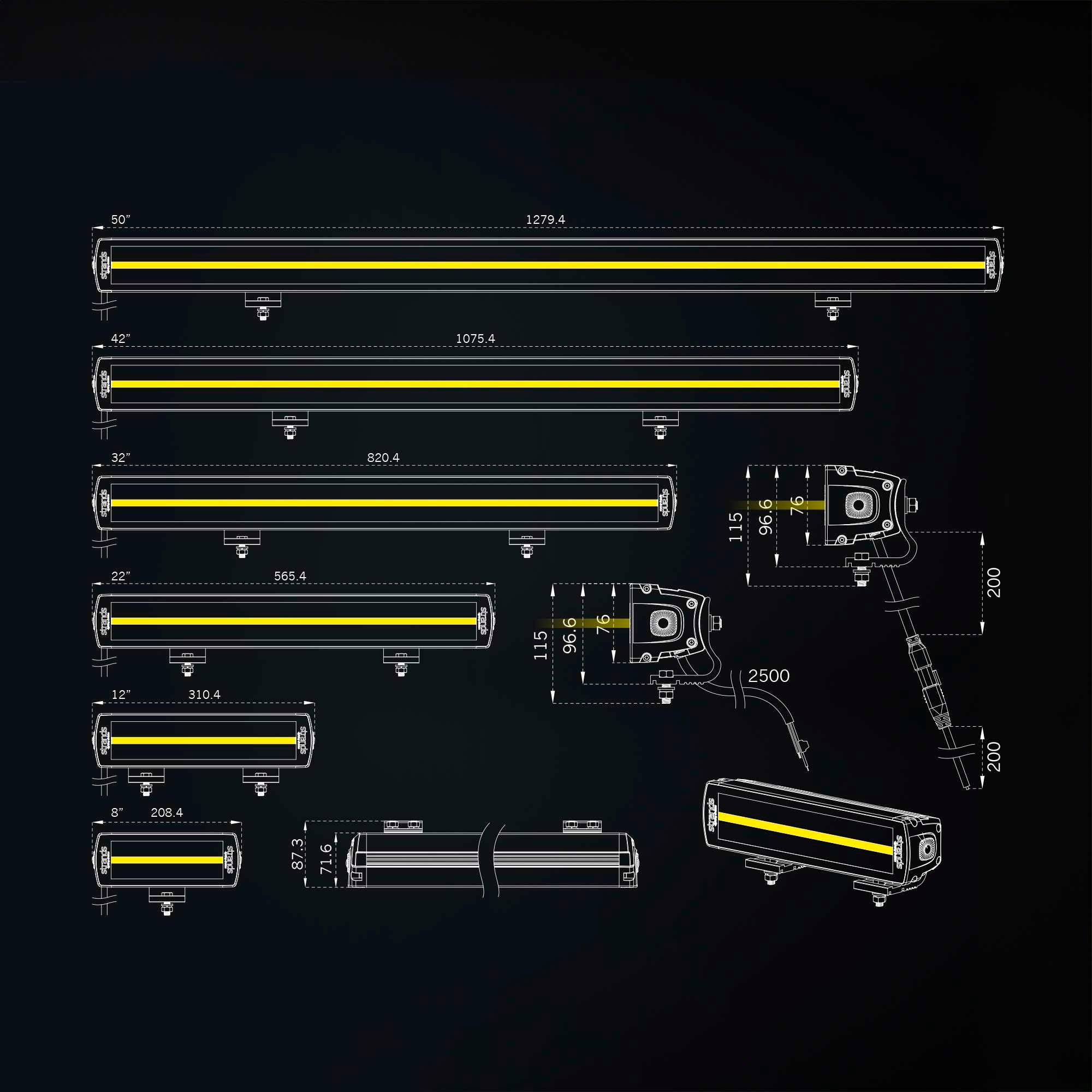

Length
565.4
Depth
71.6
Height
76
Height including bracket
96.6
Weight
2.97
IP-class
IP68/69K
Operating temperature
-35 - +65
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

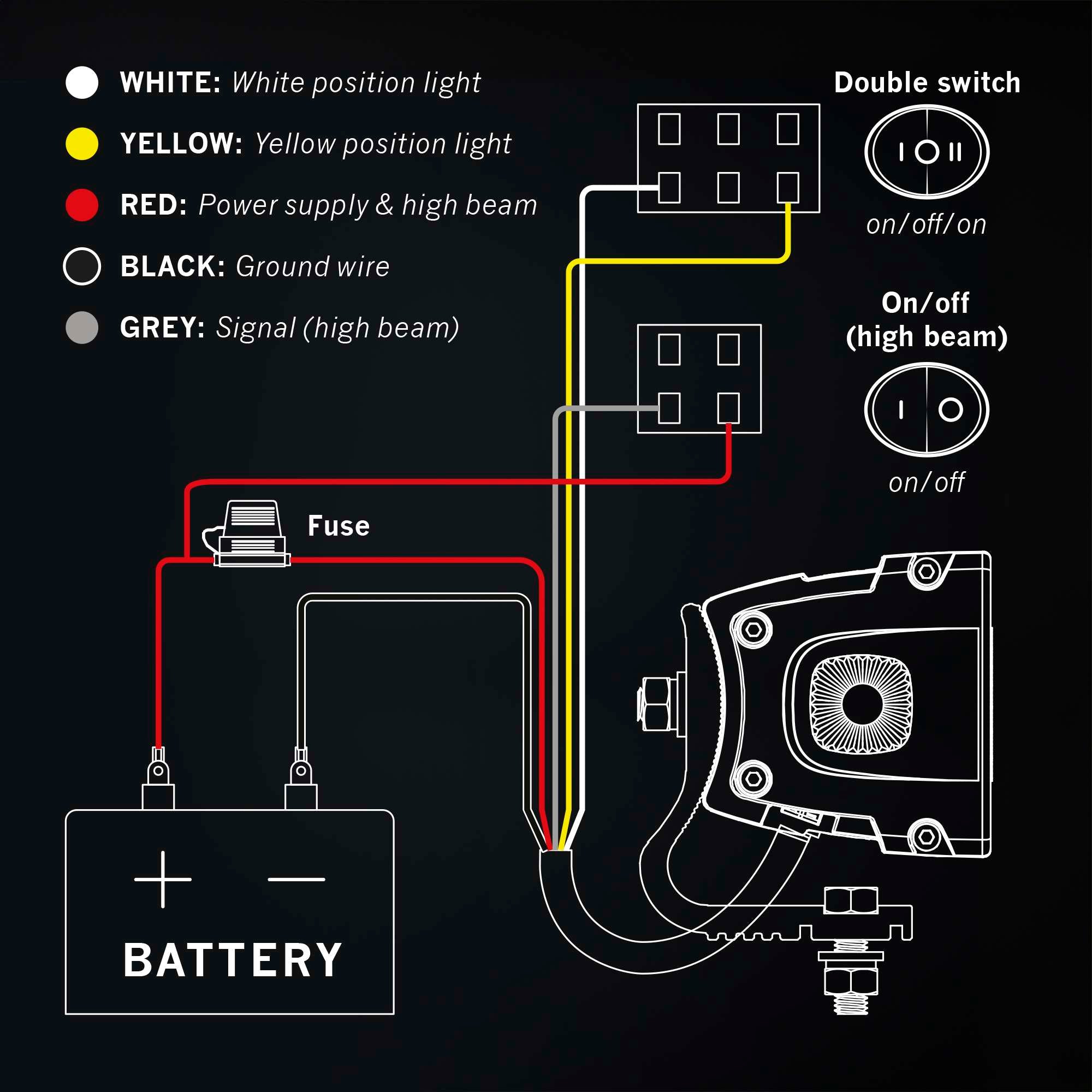

Cable assignment

Black
- (Negative)
Red
+ Positive with fuse
White
White position lamp
Yellow
Yellow Position Light
Grey
Signal wire connects to +VDC
