Strands SIBERIA XP DR LED BAR 12″

10-32
84
6120
IP68/69K
Sale price296,90 €

Tax included. Free Shipping from €300*

Only a few items left
Strands SIBERIA XP DR LED BAR 12″ – Video

GTIN: 7323030192723SKU: 809426

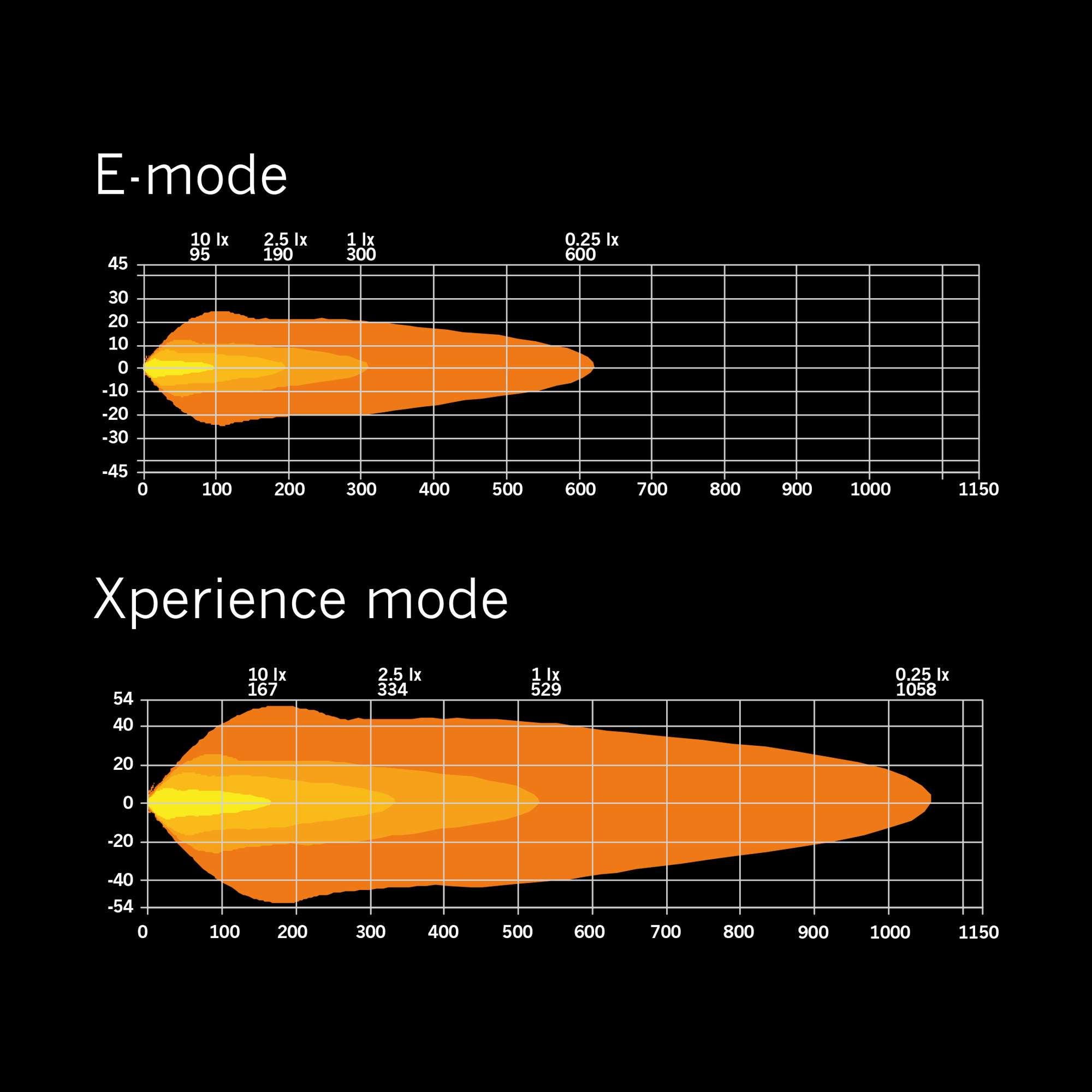

The Strands Siberia XP Double Row LED auxiliary light was developed for maximum light output in a compact design. The double row design ensures significantly improved illumination and delivers up to 100% more power compared to the previous generation. The 12-inch model combines a wide beam pattern with 1,925 lumens in E-mode and a powerful 6,120 lumens in Xperience mode, achieving a visibility range of up to 529 meters.

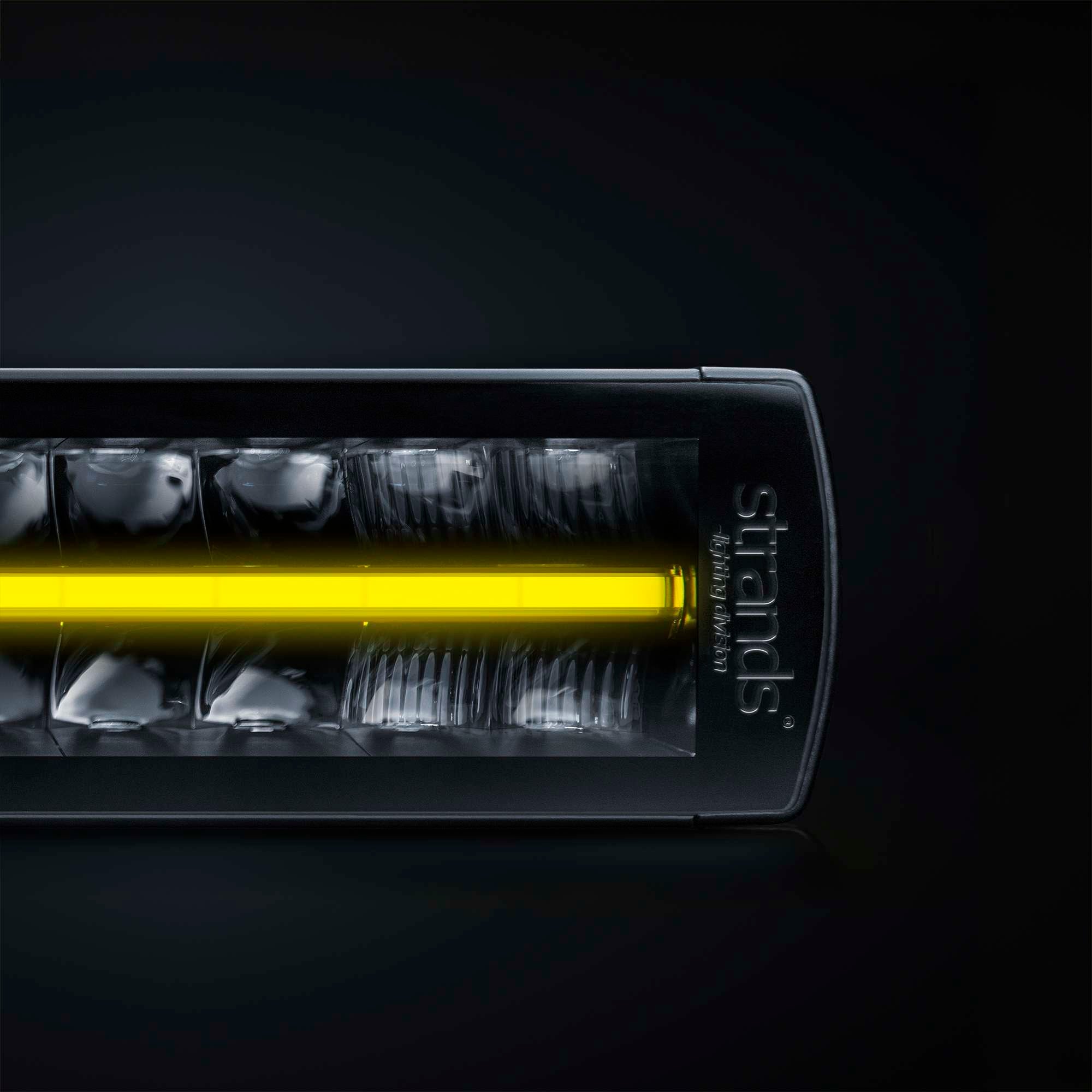

With a color temperature of 5,700 Kelvin, the Strands LED Lightbar produces a clear, high-contrast light image. The integrated white and amber position light gives the Strands LED auxiliary light a striking appearance and ensures additional visibility on the road.

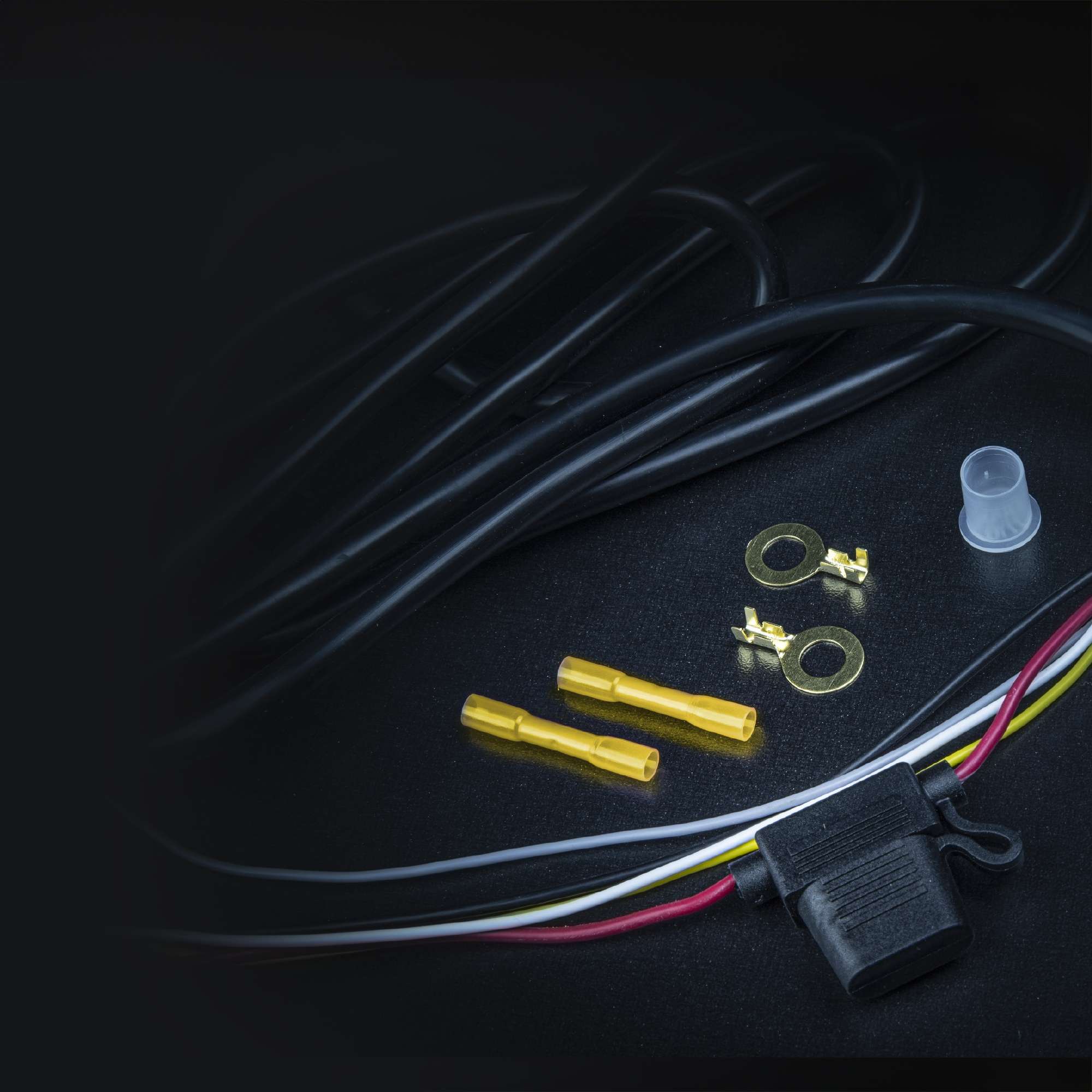

The compact design makes this Strands Lightbar ideal for tight installation spaces. The robust, powder-coated housing is designed for off-road use and reliably withstands vibrations, dirt, and water (IP68/IP69K). Installation is simple via the DT-4 connector with 200 mm cable. Developed by Strands Lighting Division and backed by a 3-year functional guarantee, the auxiliary light meets all relevant ECE standards, making it a reliable solution for road and off-road use.

Unit
PCS
Voltage (DC)
10-32
Consumption
84
Functions
Xperience modeE-approved modeWhite pos.Yellow pos.
Consumption specific function
X-mode 84WE-mode 25WWhite pos. 11.5WYellow pos. 11.5W
Theoretical lumen
7000
Actual lumen
6120
1 lux @
529
Color temperature
5700
Beam pattern
Extended Beam
Beam angle
15.4
Connection
DT-4PIN
Cable length
200
Color housing
Black
Color lens
Clear
Color LED's
White | Yellow
Material bracket
Aluminum
Material housing/chassi
Aluminum
Material lens
Polycarbonate
Length
310.4
Depth
71.6
Height
76
Height including bracket
96.6
Weight
1.93
IP-class
IP68/69K
Operating temperature
-35 - +65
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
White position lamp
Yellow
Yellow Position Light
