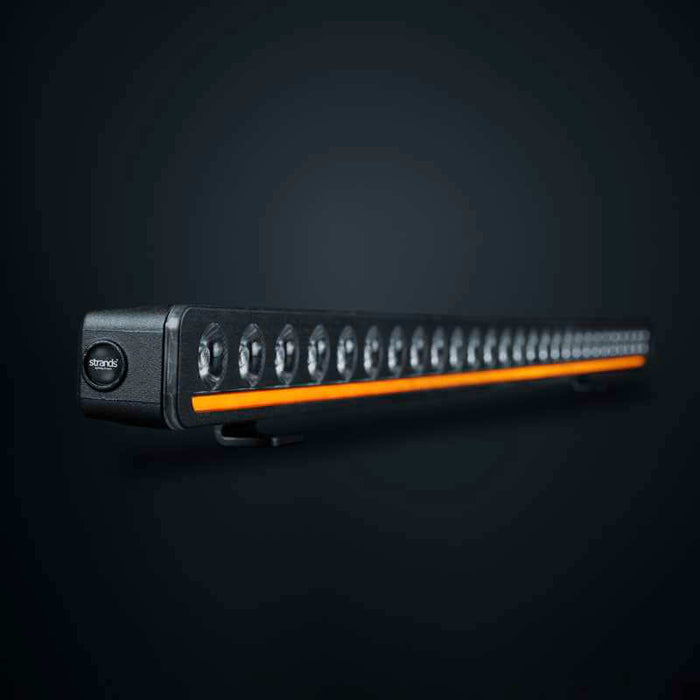

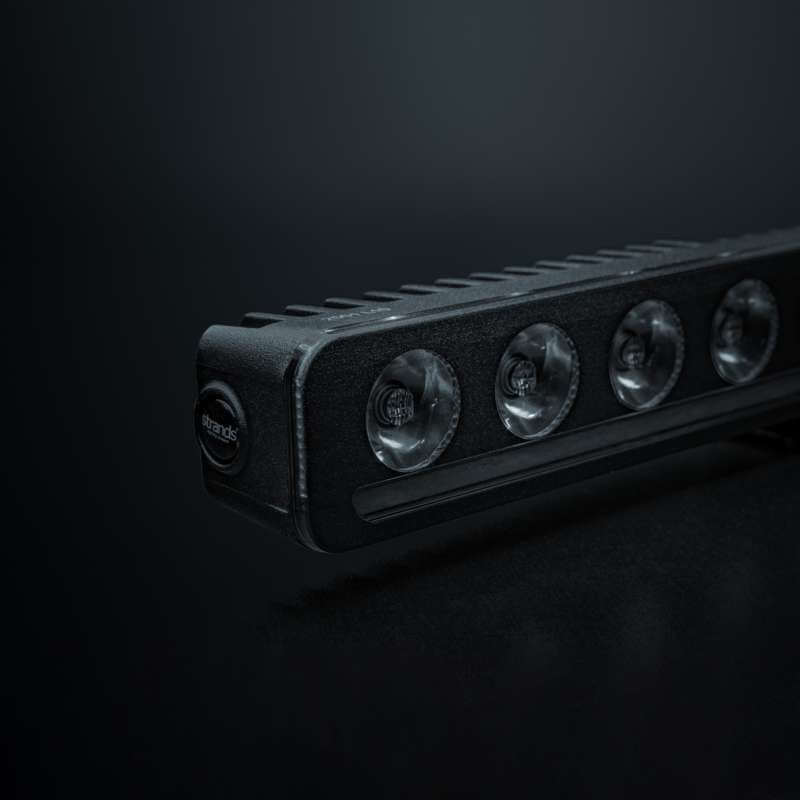

Strands NUUK D-LINE LED BAR 30″

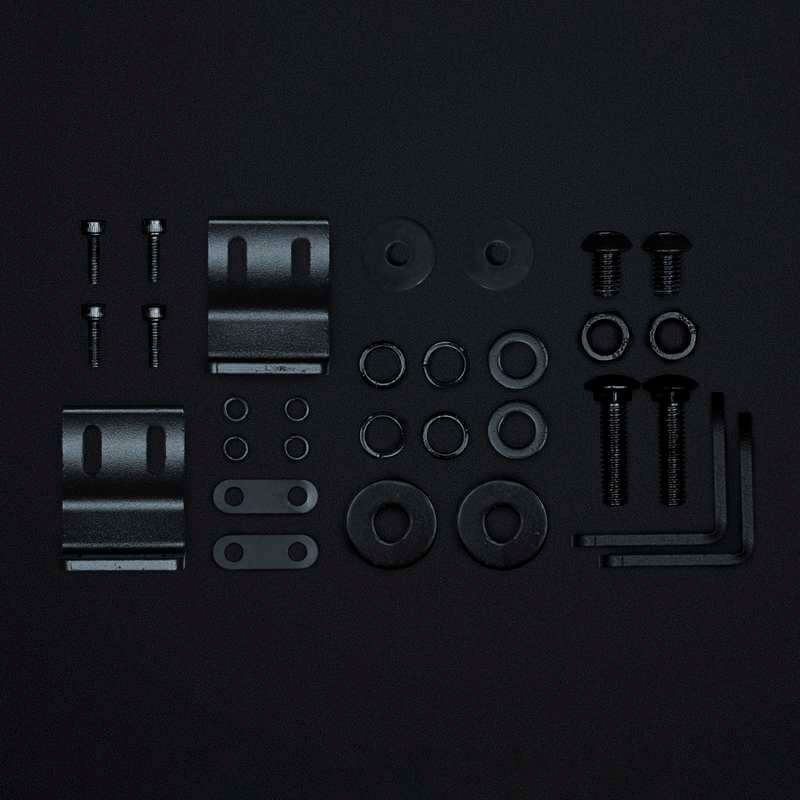

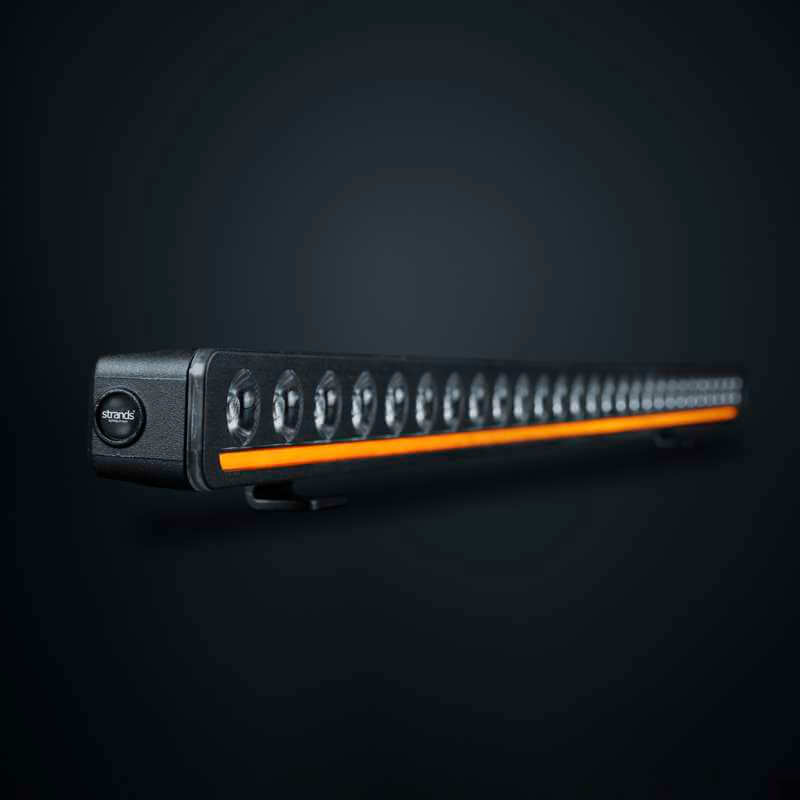

The Strands Nuuk D-Line 30" LED Bar features an extended beam pattern with a range of over 556 meters and 15,500 actual lumens in Xperience mode . It is incredibly light and slim, measuring just 3.3 cm deep and 4.5 cm high, including the bracket. The D-Line is an ideal complement to the built-in high beam. The standard high beam is usually quite wide. The Strands D-Line produces more power forward for greater range and better visibility. The result is a more comfortable, safer, and more enjoyable driving experience. The E-mode is E-approved according to R148/149 with reference number 20 , which is mandatory in many European countries. Many drivers prefer this mode in rain or snow, as it reduces glare from water particles. The Xperience mode allows for high output with maximum range and brightness. This LED bar has a sleek black housing and lens, highlighted by the glow of the white and amber position light. The Nuuk D-Line is easy to use, lightweight, has a built-in relay, and includes everything needed for installation.

Technical data:

• Voltage : 9-36 V DC
• Theoretical power : 165 W
• Consumption : E-mode: 34 W / Xperience mode: 165 W

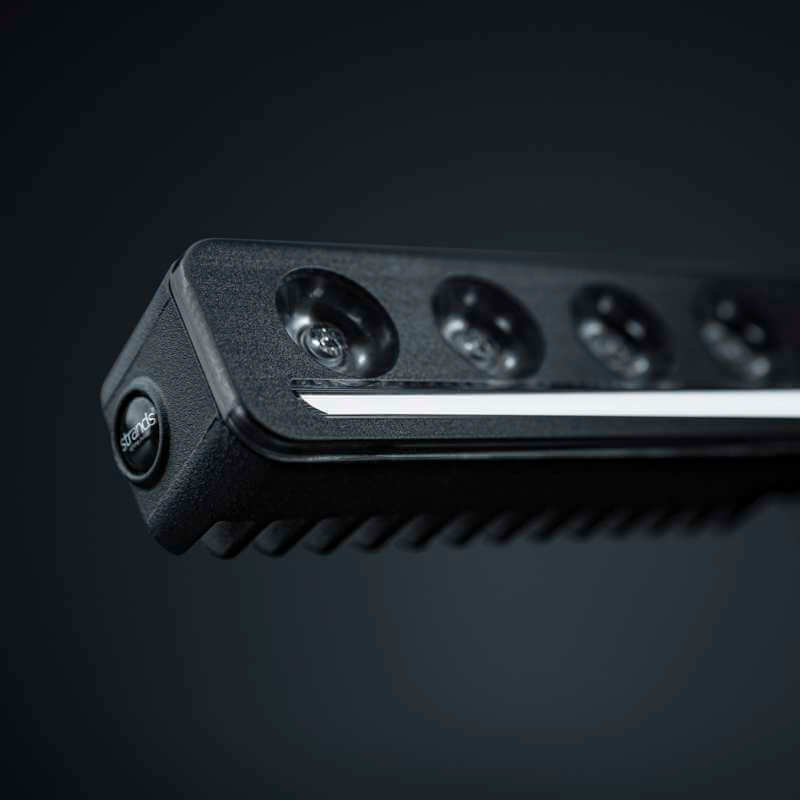

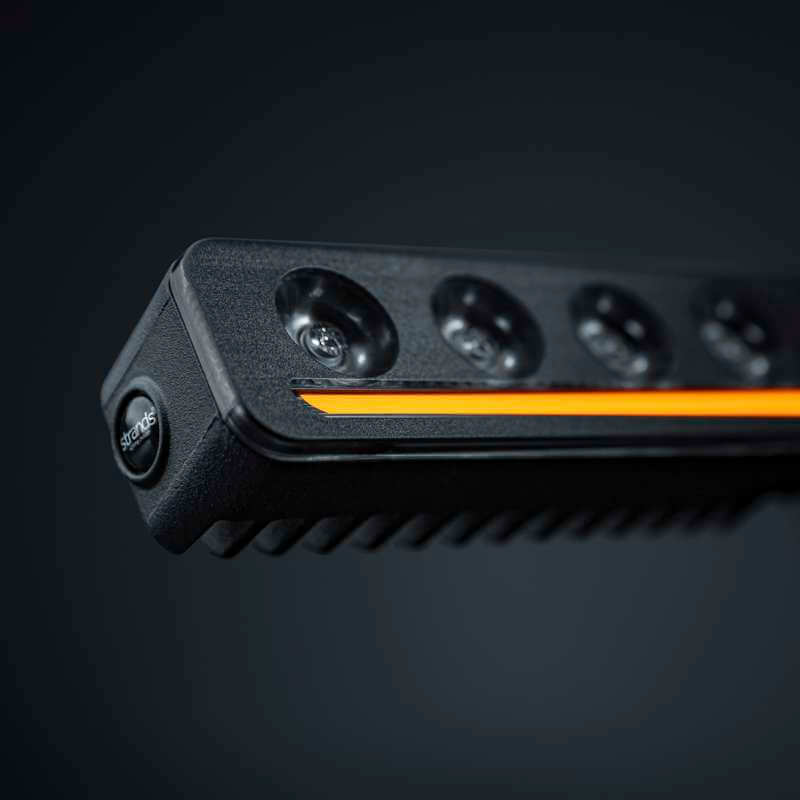

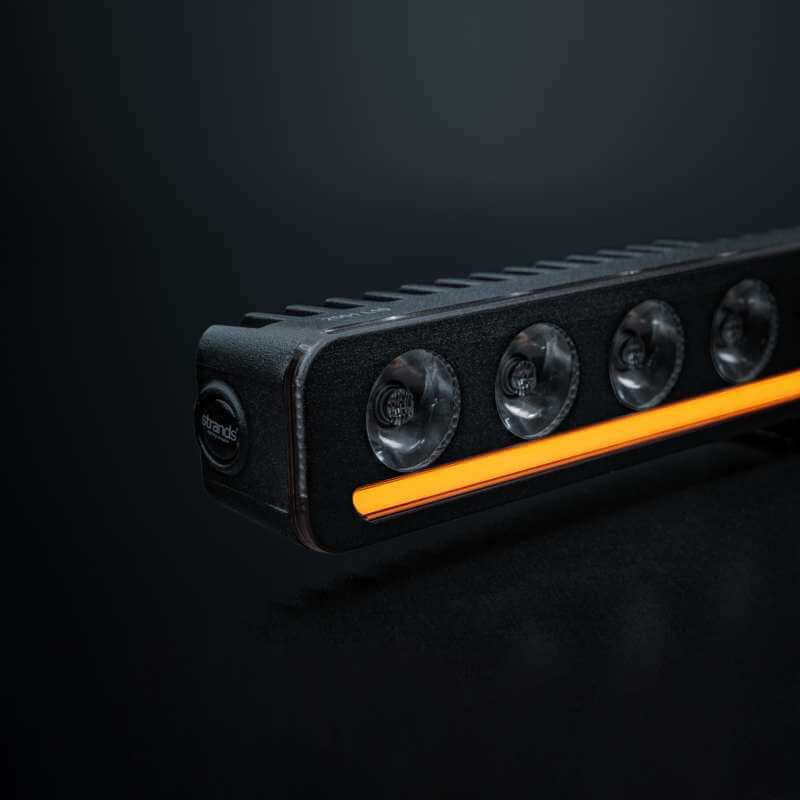

• Functions : High beam, white and yellow position light
• Consumption specific function : White position light: 13.8 W / Yellow position light: 14 W
• Theoretical luminous flux : 15,000 lm
• Actual lumens : E-mode: 3500 lm / Xperience mode: 15500 lm

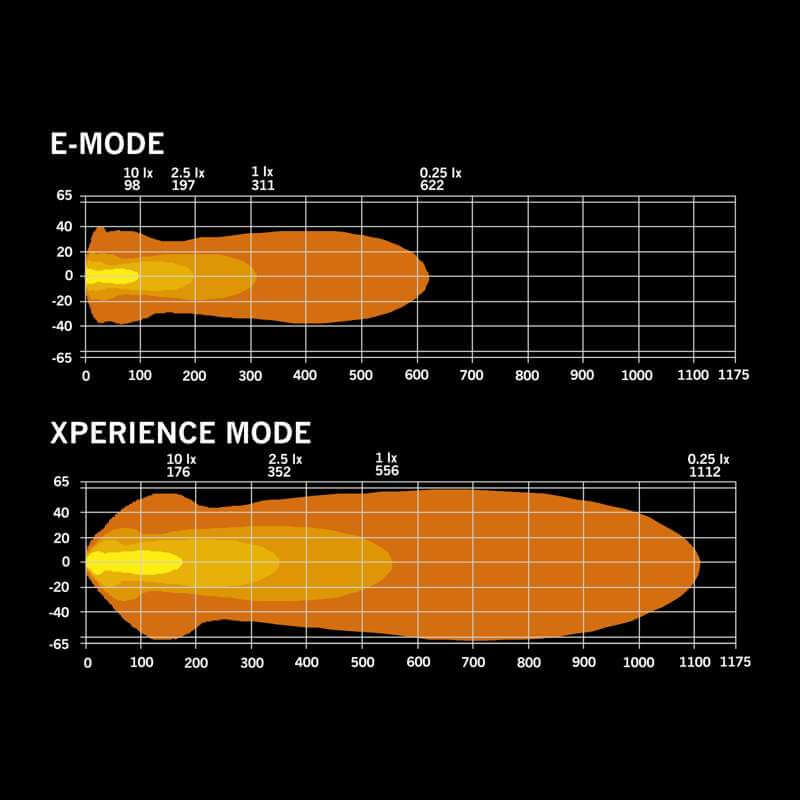

• 1 Lux at : E-mode: 311 m / Xperience mode: 556 m
• Color temperature : 5000 K
• Light distribution : Extended light beam
• Beam angle : 31.1°

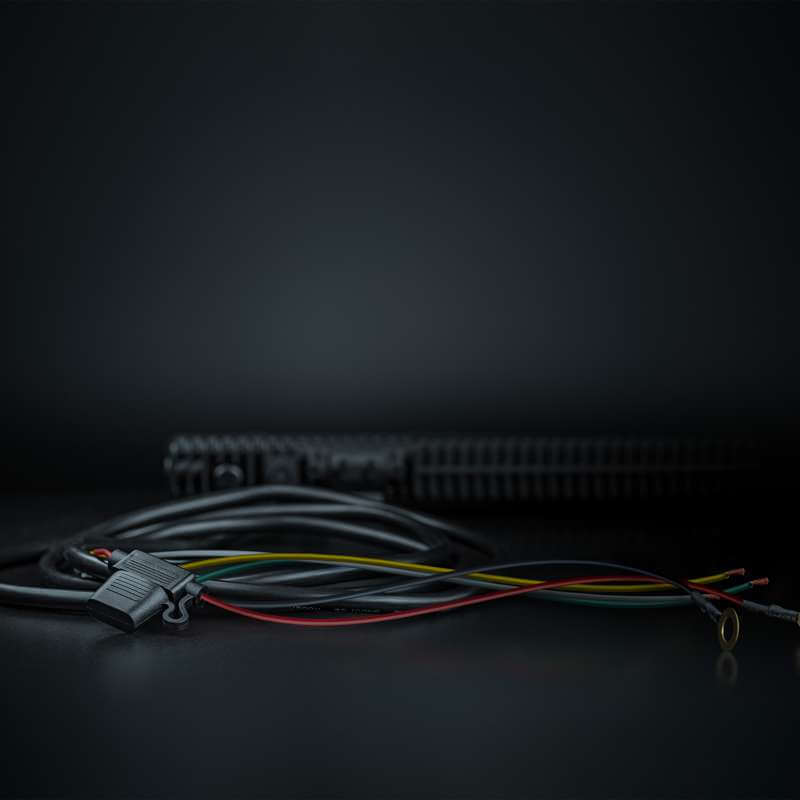

• Connection : Cable
• Cable length : 2500 mm
• Case color : Black
• Lens color : Black

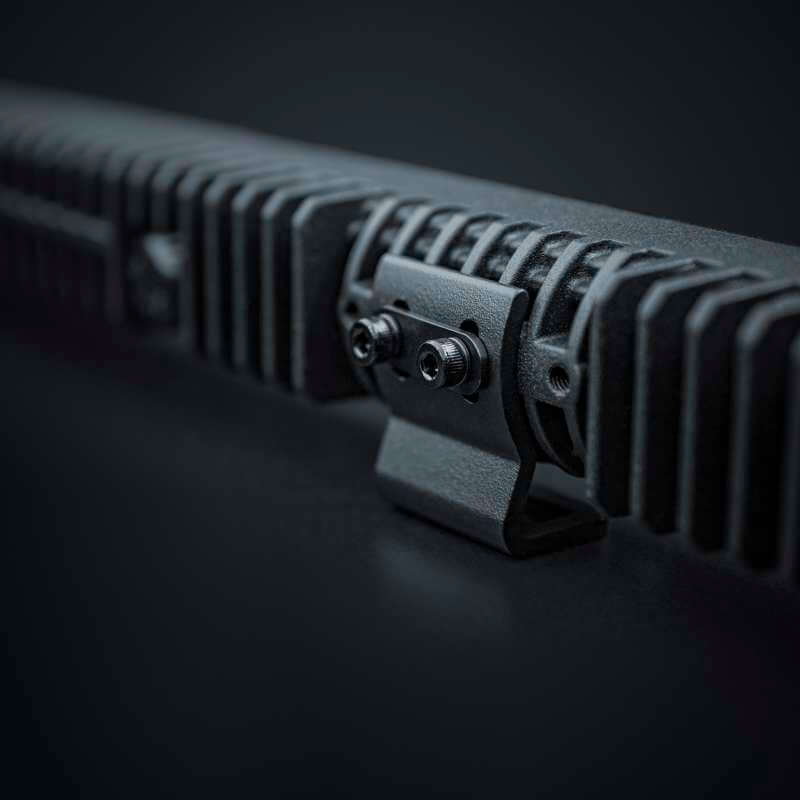

• Material bracket : stainless steel
• Housing/Chassis Material : Aluminum
• Lens material : polycarbonate

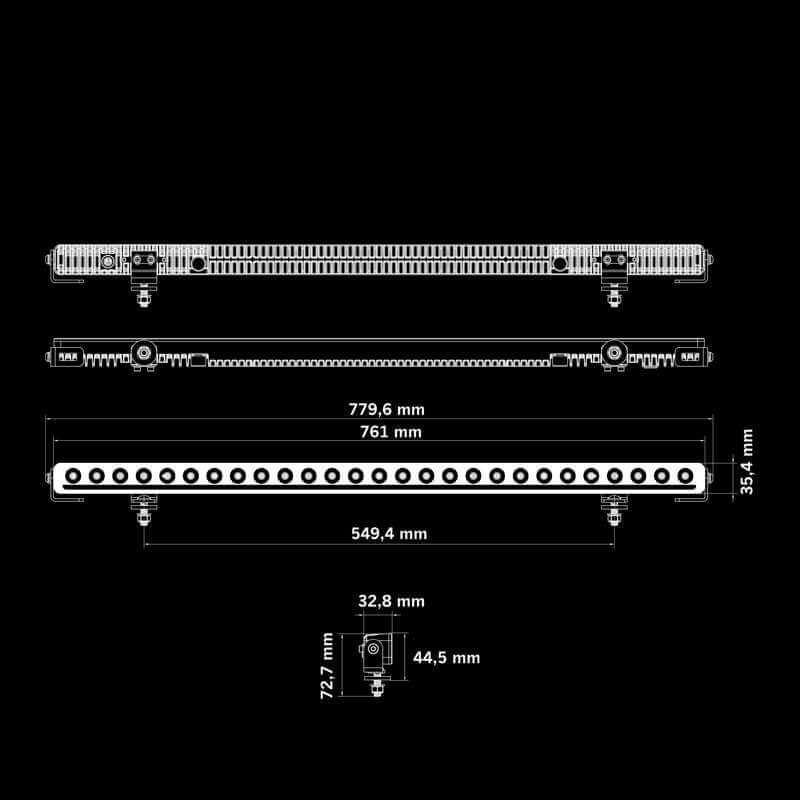

• Length : 761 mm
• Depth : 32.8 mm
• Height : 35.4 mm
• Height including bracket : 44.5 mm
• Weight : 1.8 kg
• IP class : IP68/69K
• Operating temperature : -40 - +60 °C
• E-tested : Yes
• According to regulation : ECE R148, R149
• Reference number : 20
• EMC : ECE R10
