Rear winch carrier for pickups with winch and synthetic rope

Sale price1.349,00€

Tax included. Shipping calculated at checkout

SKU: HPABACK013500DY_XGTIN: 9008683022013
Rope length: 30m

Längere Lieferzeit! Bitte beachte, dass dieses Produkt speziell für dich vorbereitet wird und die Lieferzeit daher bis zu 2 Wochen dauern kann.

  • Entwickelt in Österreich
  • 5 Jahre Garantie
  • Kostenlose Beratung

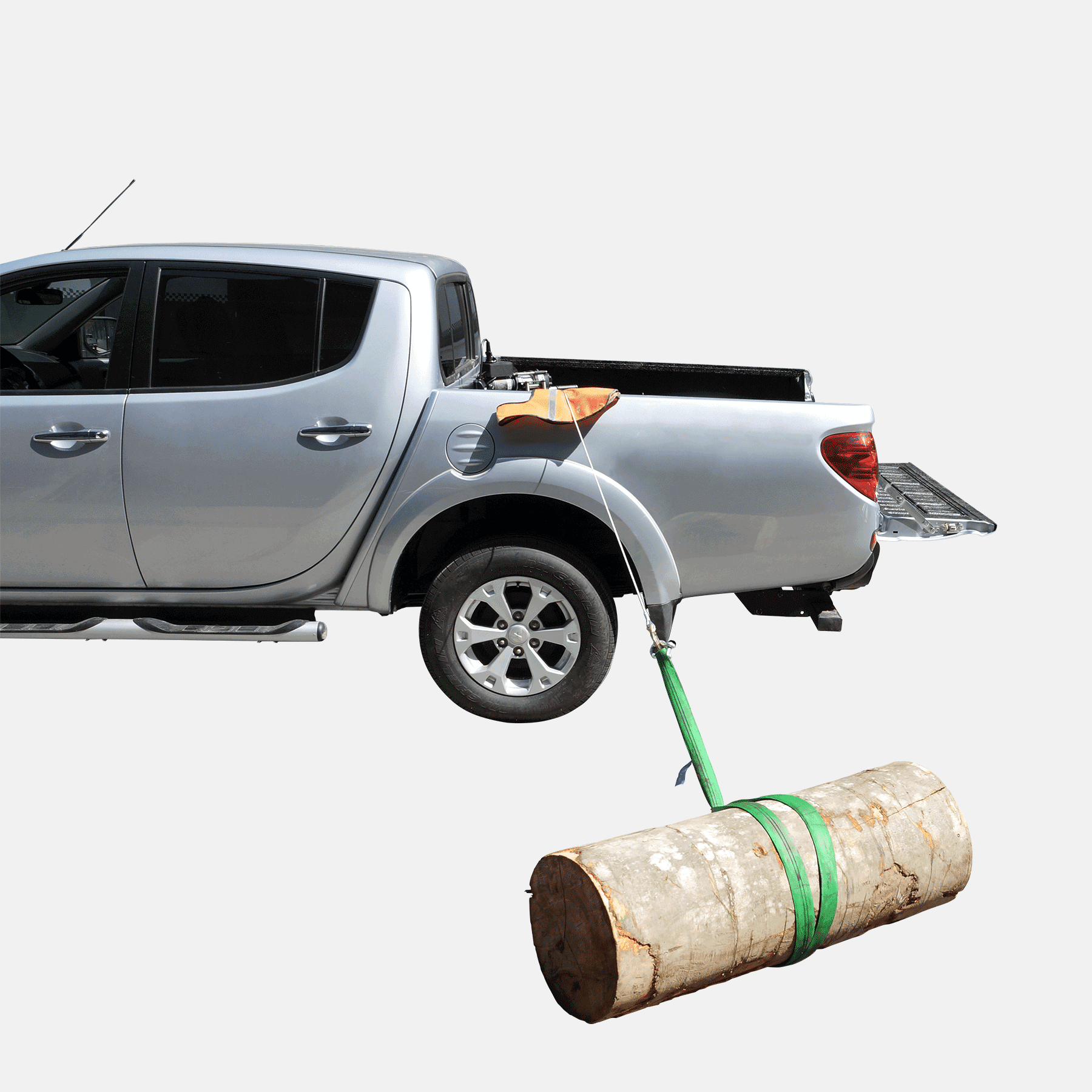

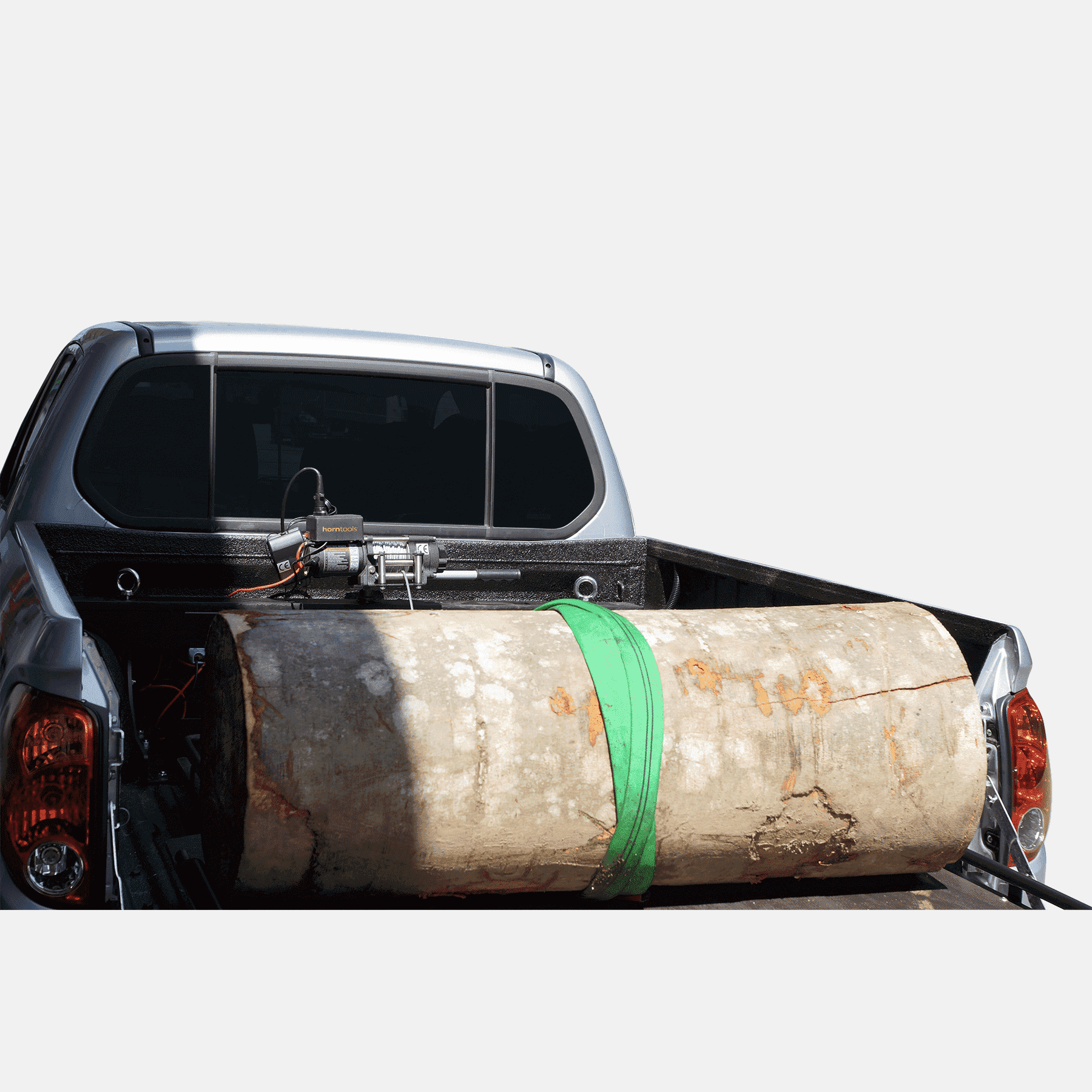

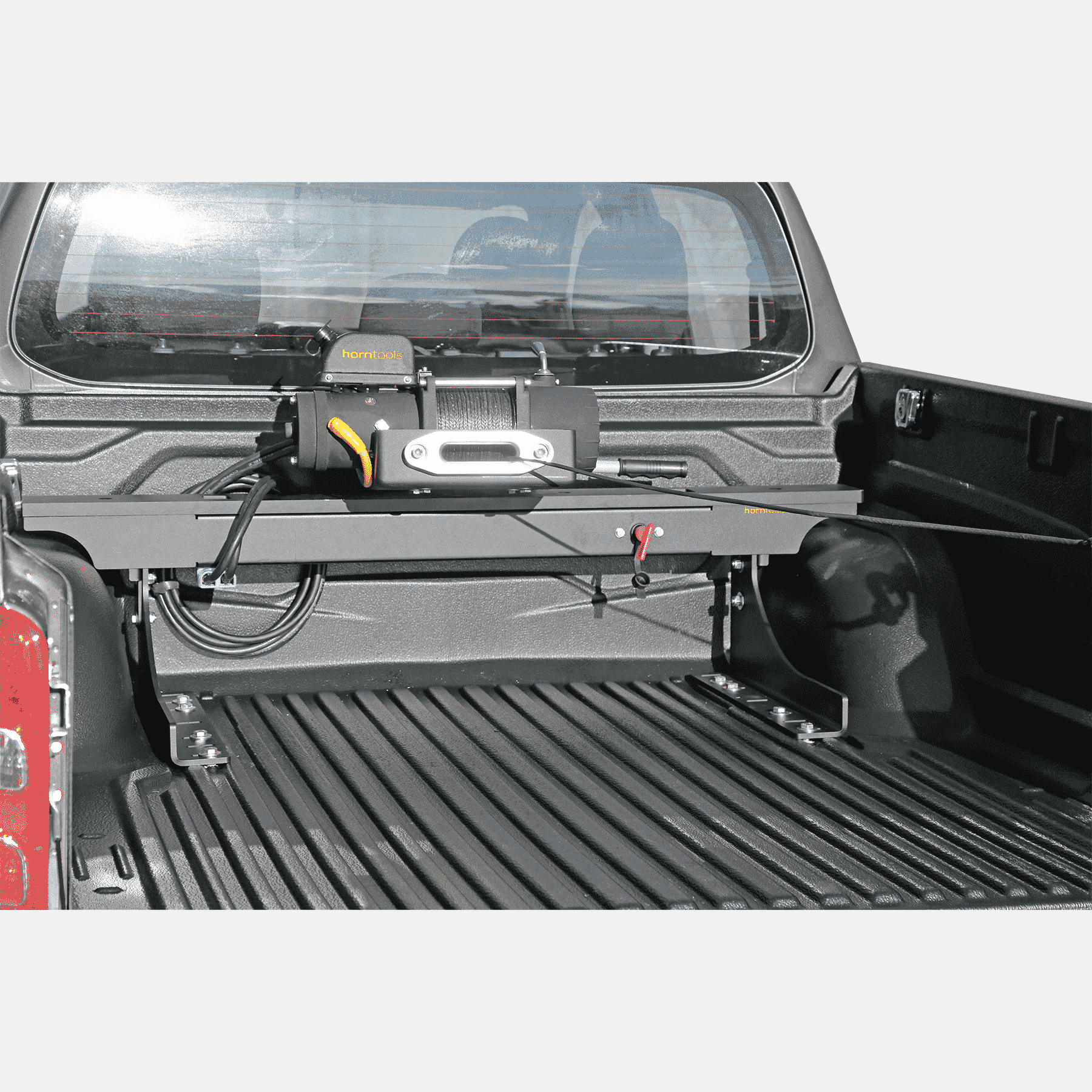

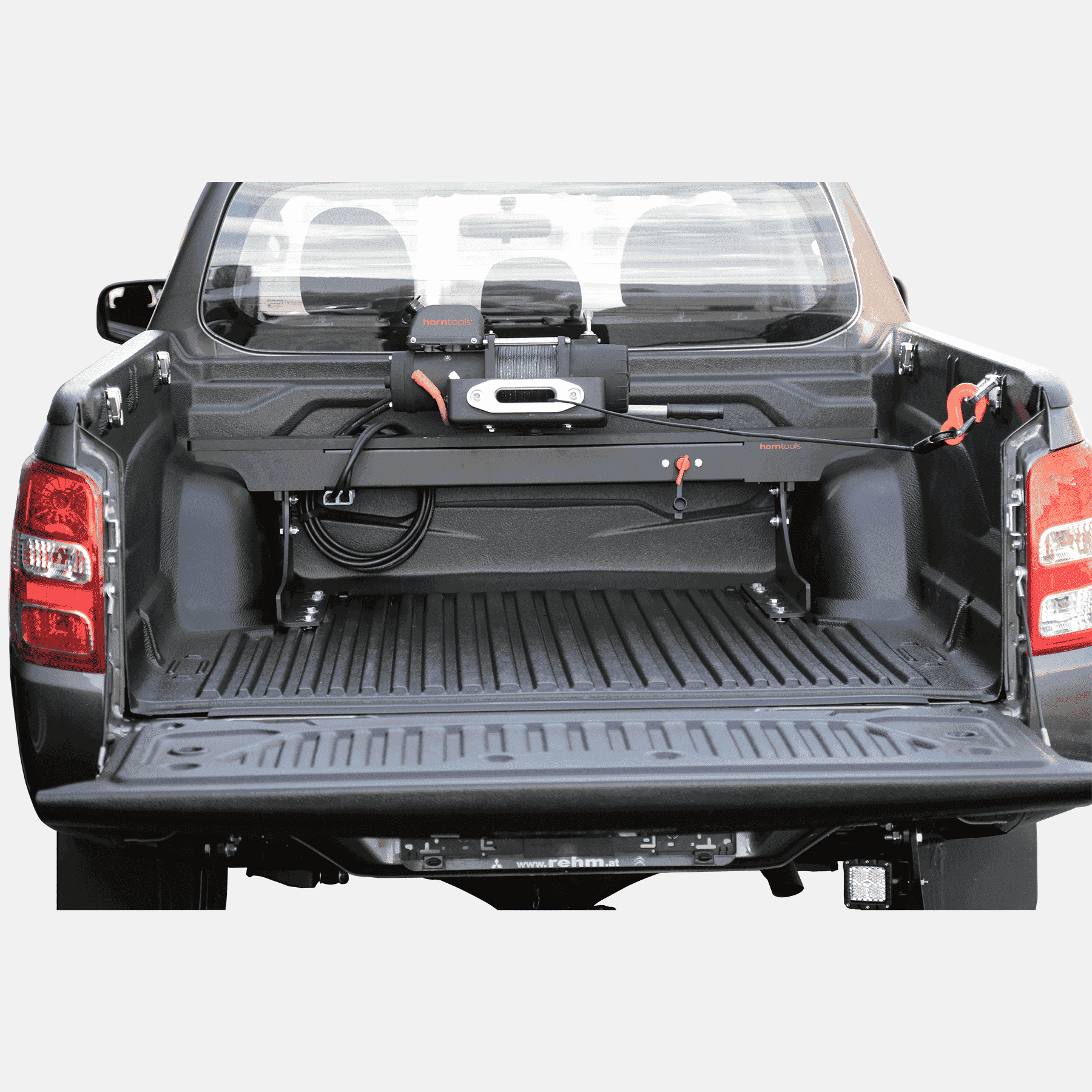

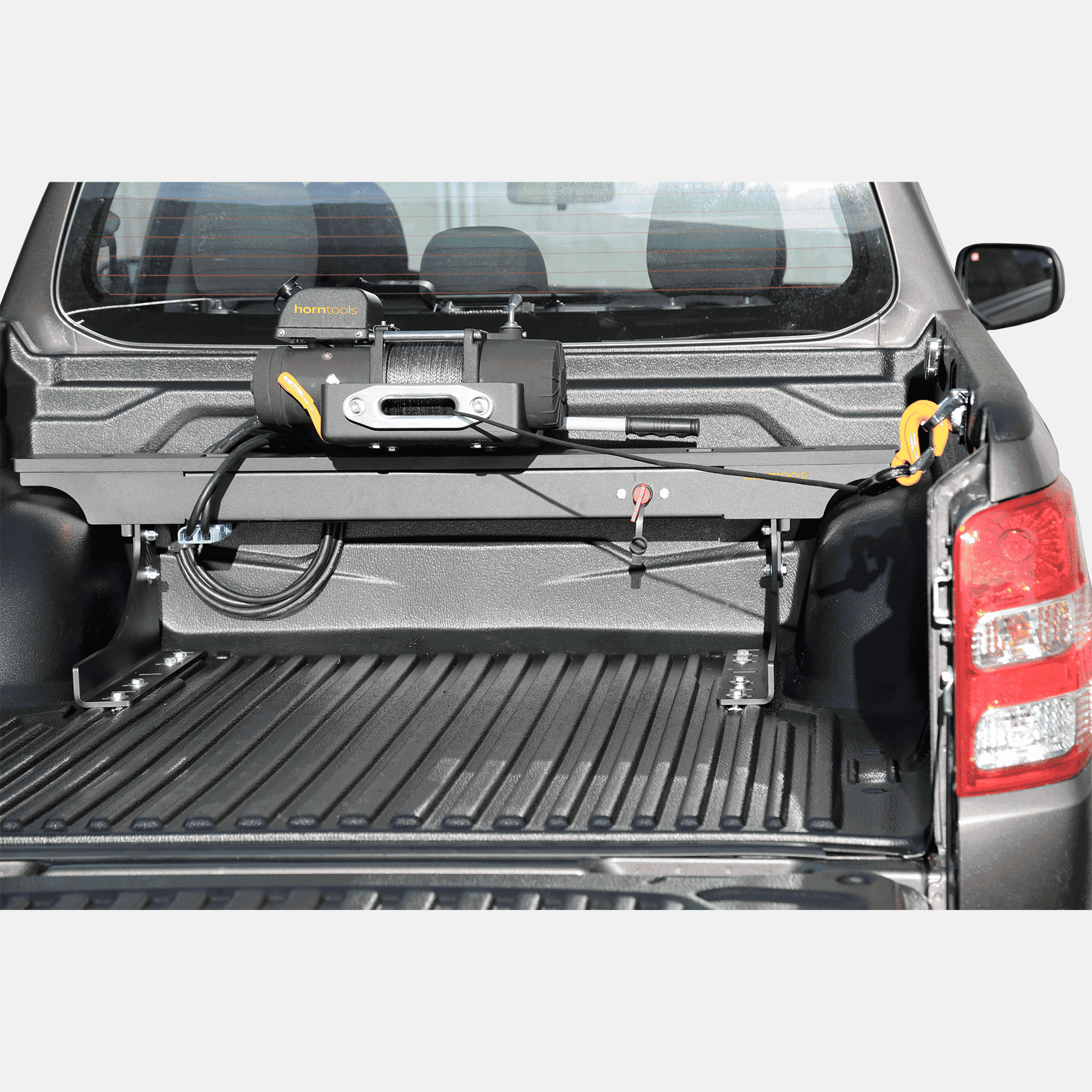

Winch system including rear carrier suitable for all pick-ups

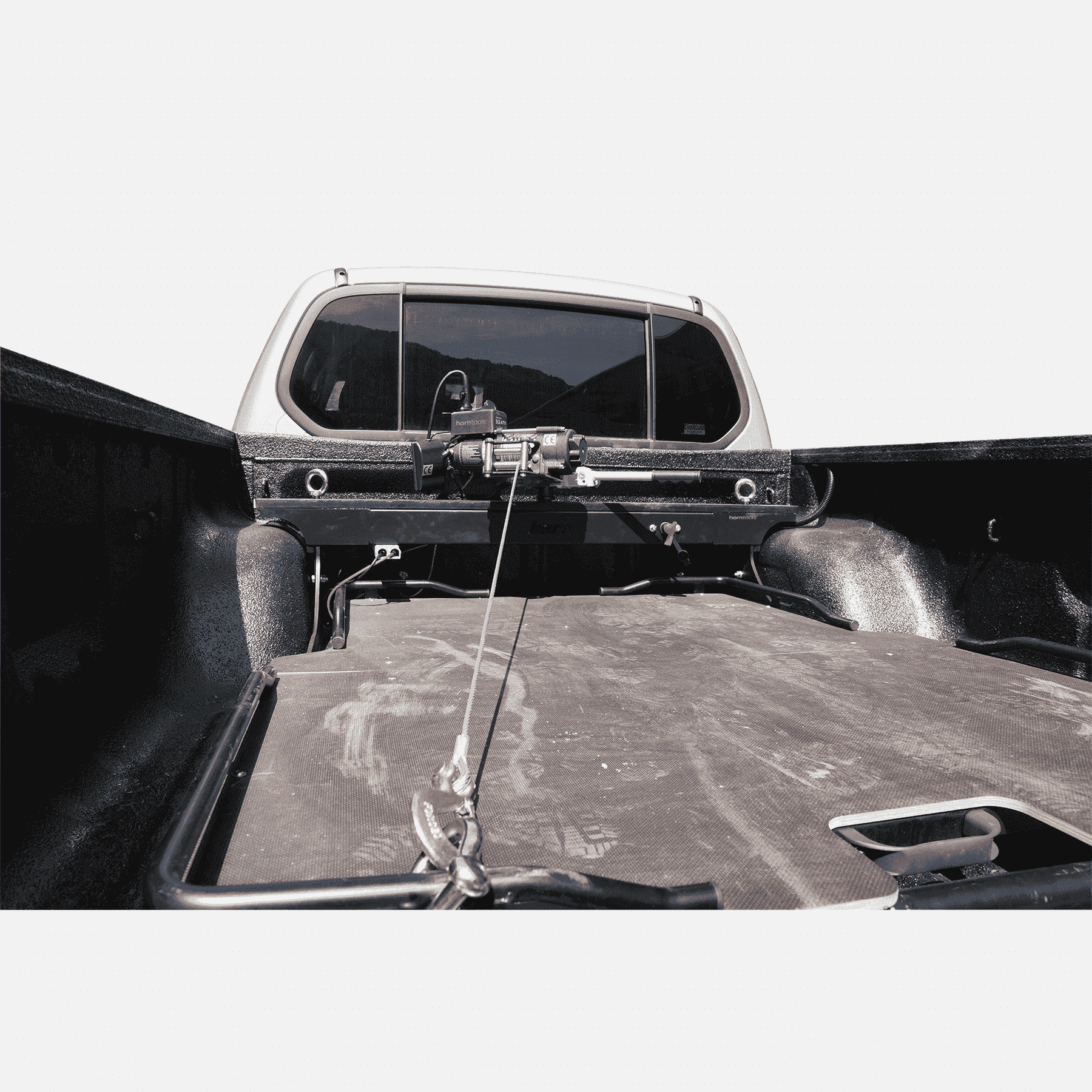

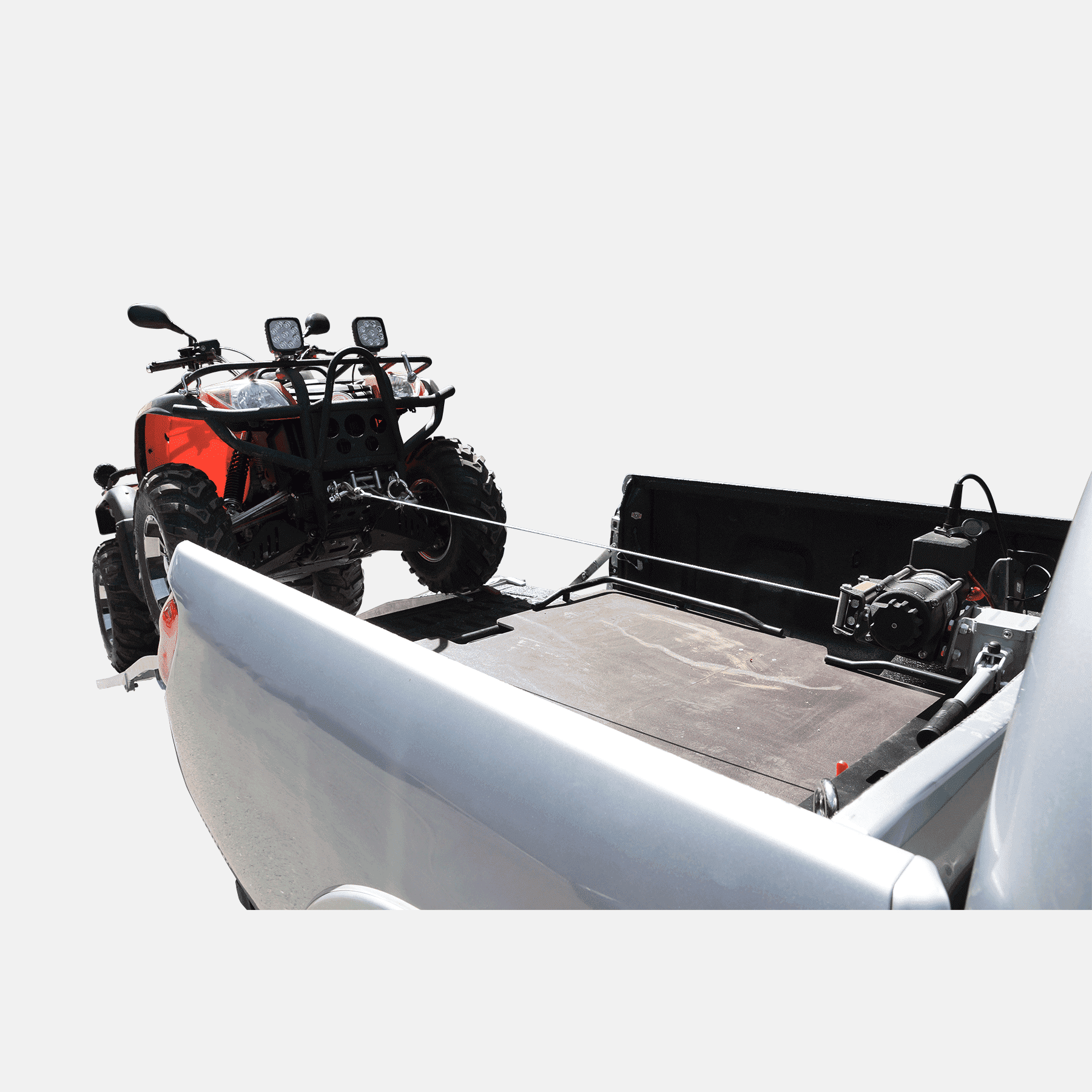

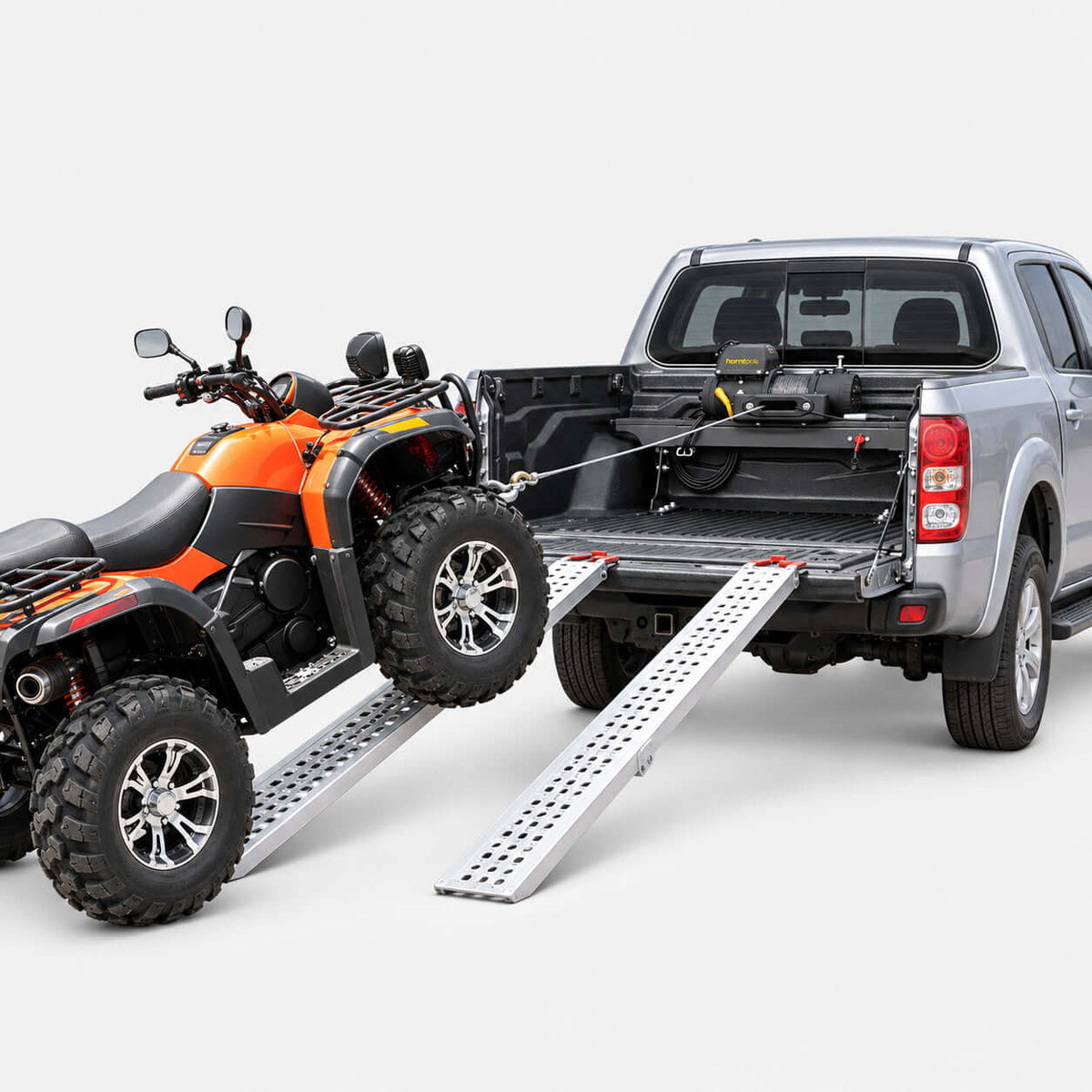

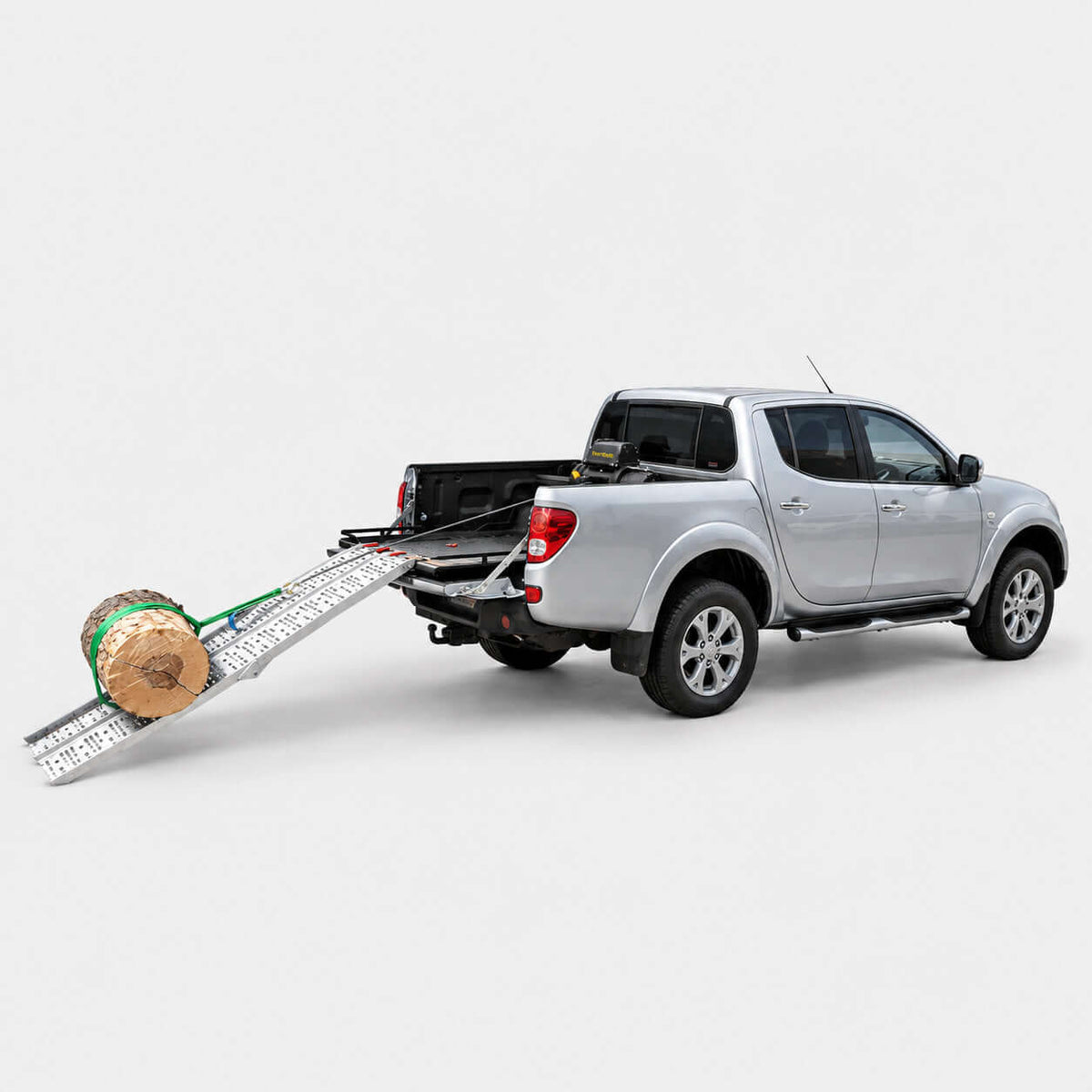

The horntools winch system allows you to optimally use the winch with your pick-up. Thanks to its special design, the width of the rear carrier can be adjusted 9 times. This means it can be used on standard loading surfaces, even if a drawer, hardtop or loading space cover is installed. You can also operate the winch on your trailer hitch. For this you need a cable set extension

The rear carrier fits the following pick-ups:

  • Volkswagen Amarok
  • Toyota Hilux
  • Mitsubishi L200
  • Nissan Navara
  • Dodge Ram
  • Ford Ranger
  • Other American vehicles

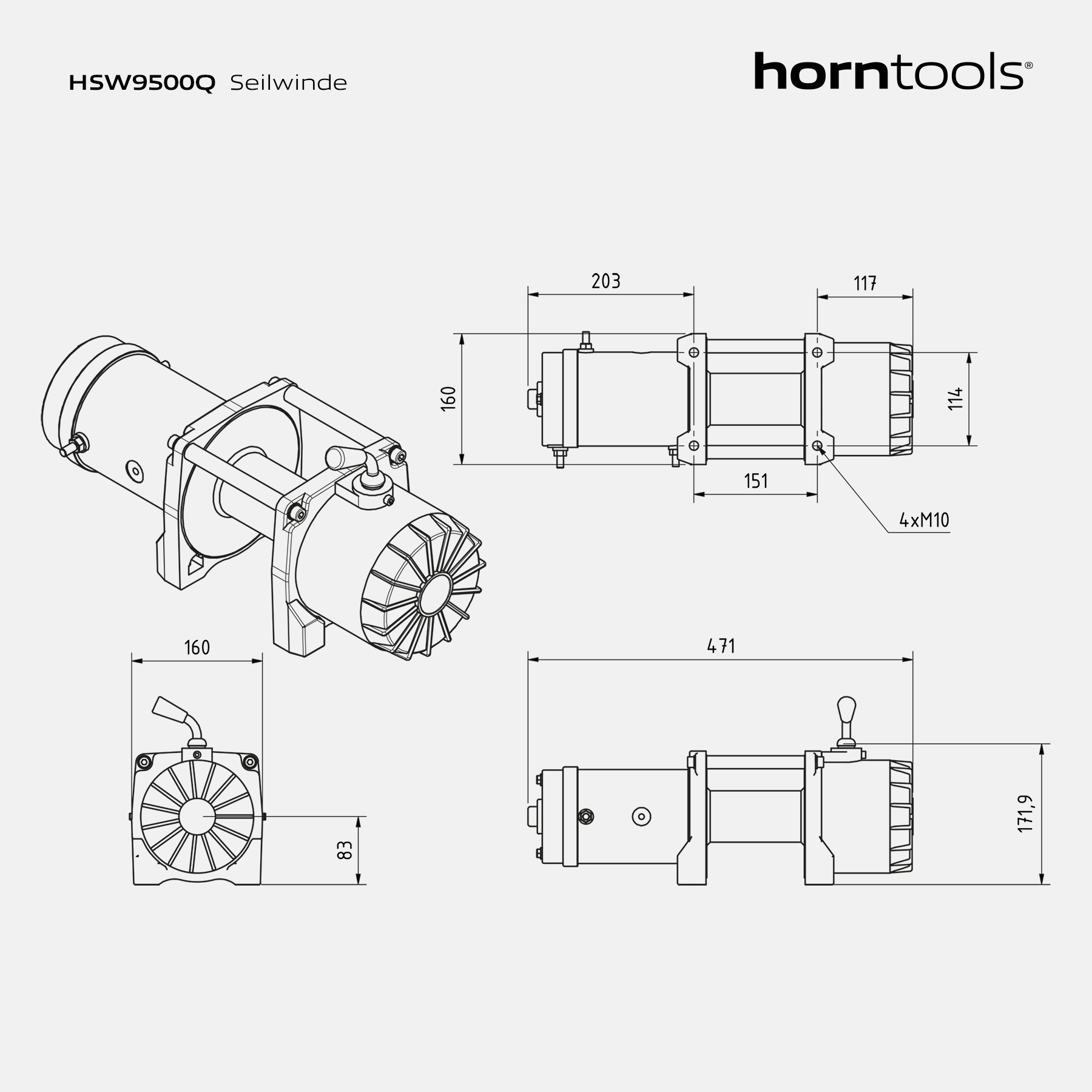

The weight of the carrier, without winch, is 39 kg and it is 50 cm long, 135 cm wide and 38 cm high. If you attach your winch to the carrier, it will have a total height of 71 cm.

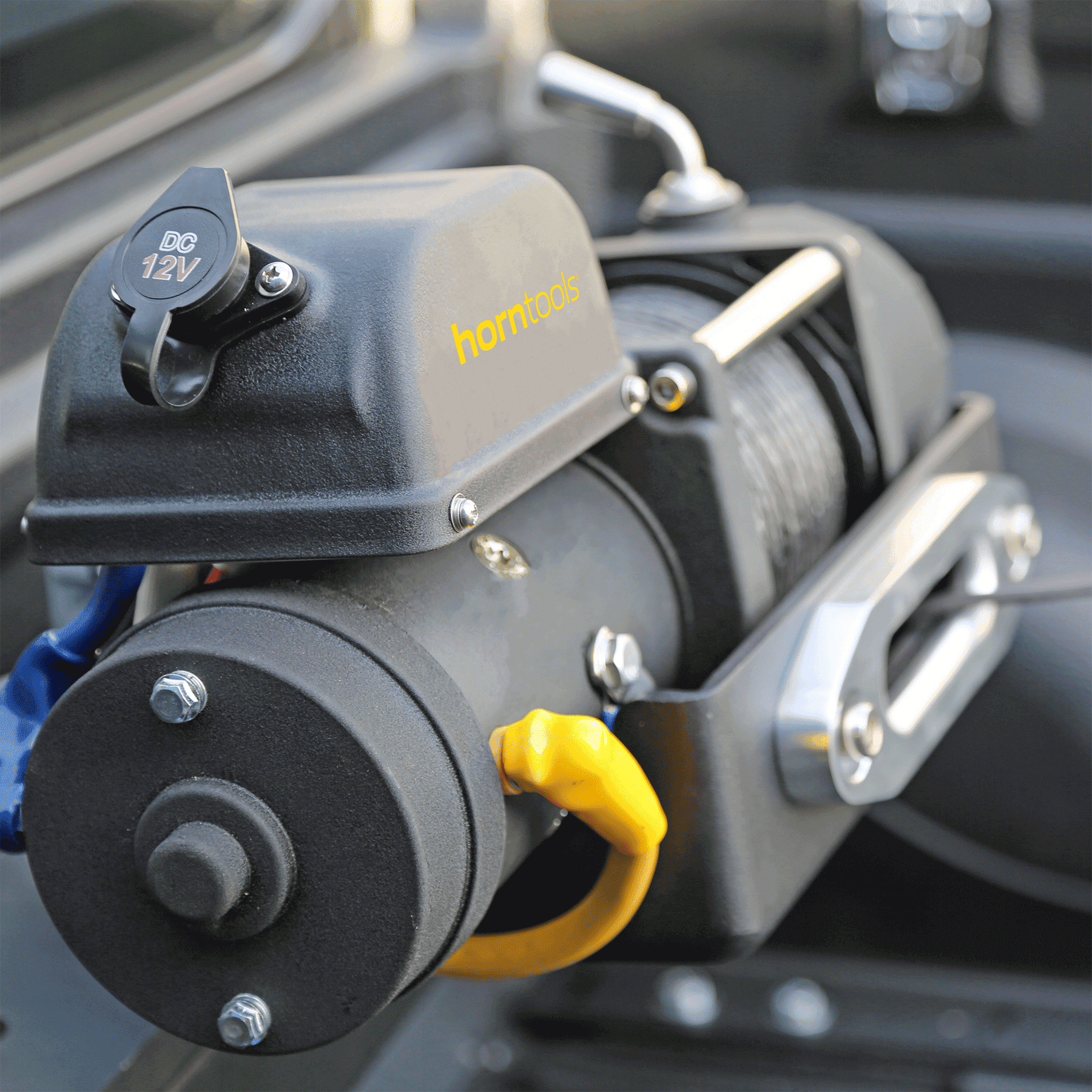

  • Motor IP67 sealed by groove with sealing ring

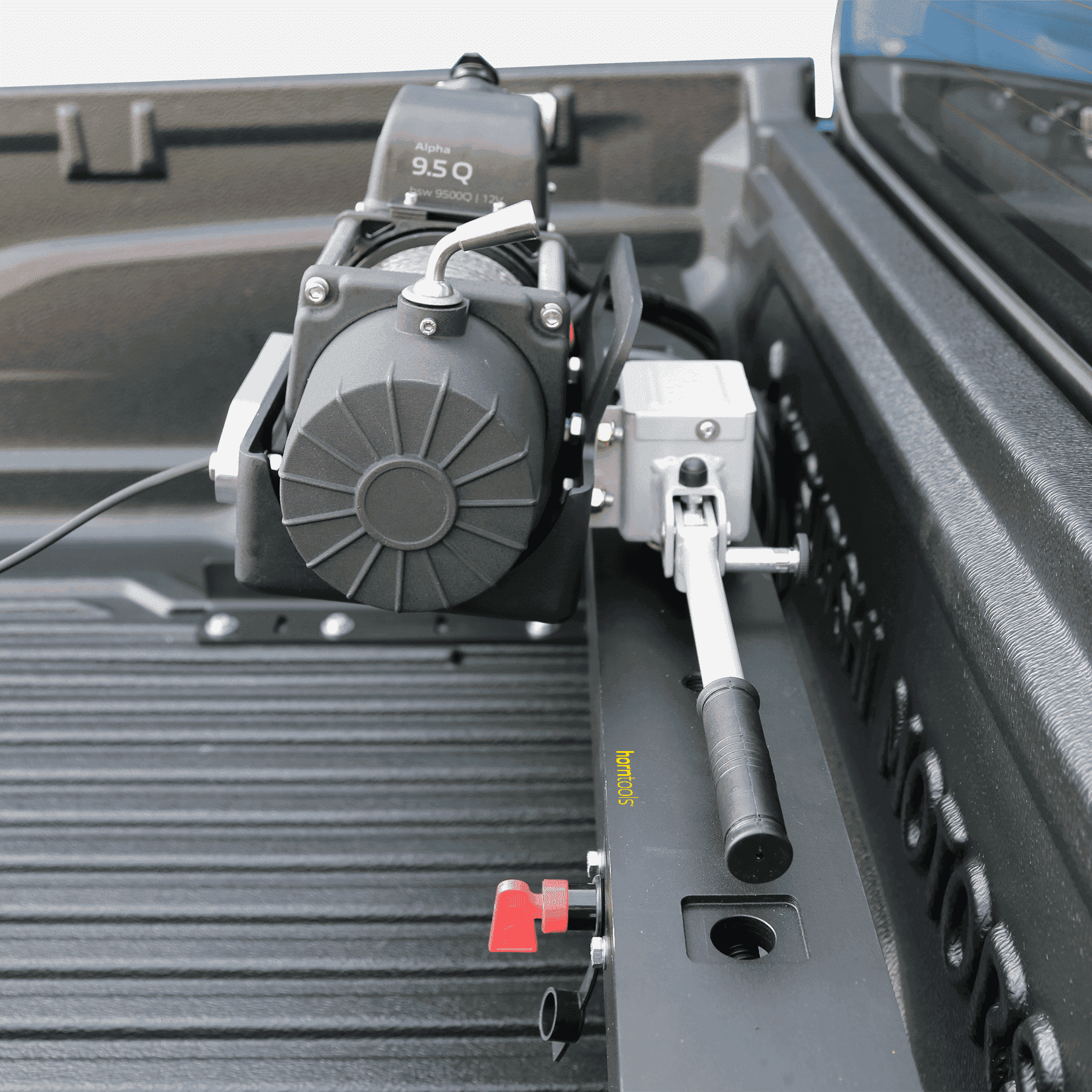

  • Freewheel lever
  • Stainless steel crossbars
  • Reinforced rope drum
  • Powder-coated aluminum die-cast housing motor/gearbox
  • Internal drum brake with 3 brake shoes
  • Removable control unit (so that the control can be installed anywhere)
  • Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

  • Rear winch carrier

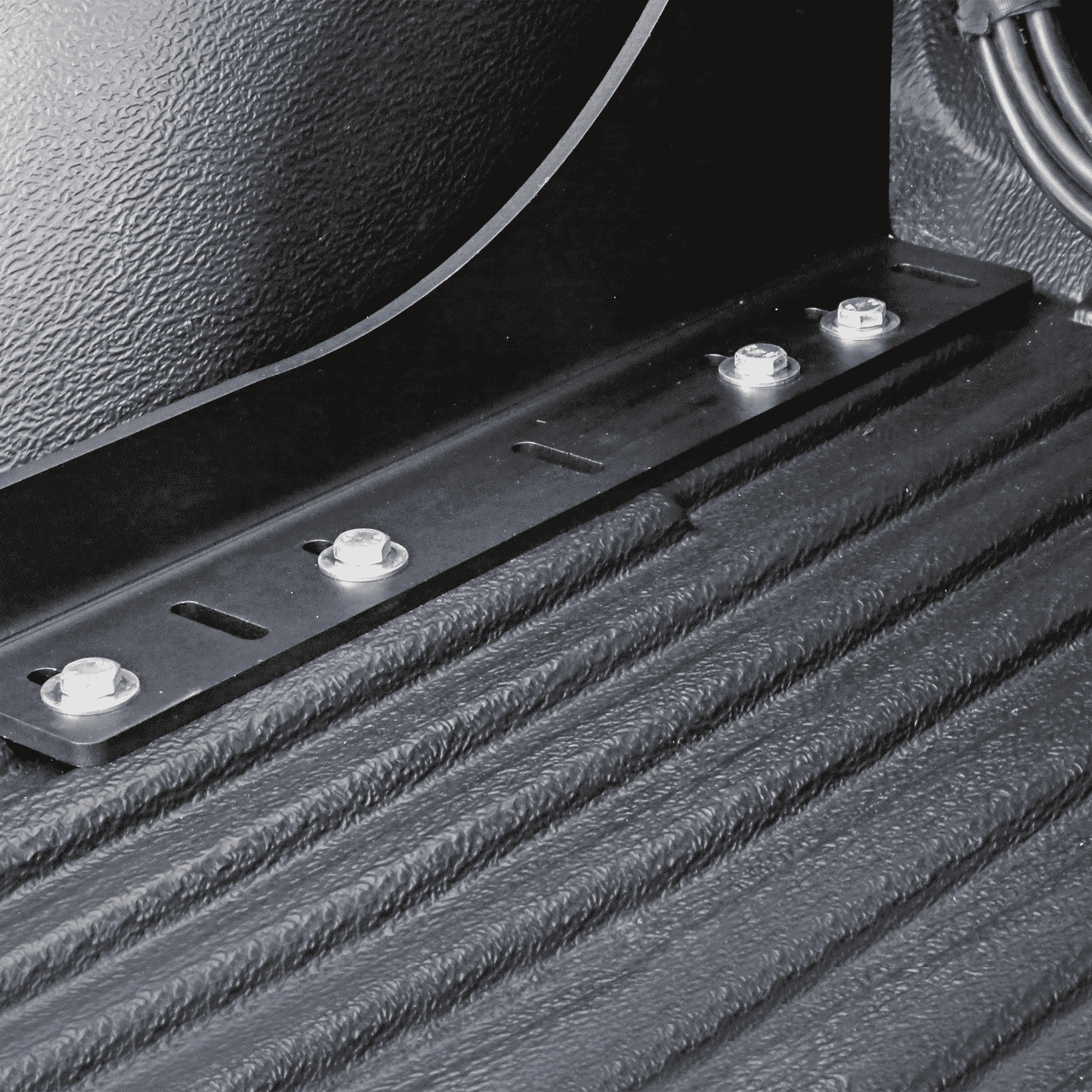

  • Mounting plate
  • Cable set with plug on the winch
  • Cable set on vehicle side (vehicles up to 5m total length)
  • Trailer hitch lock
  • Quick release for mounting on a trailer hitch or on the Horntools winch carrier
  • Winch
  • Aluminum cable window
  • Fastening screws
  • Synthetic rope
  • Cable remote control
  • Radio remote control
  • Operation manual


Please note that our winches may only be used for ground traction and are not suitable for lifting! The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury! The carrier was designed for a load of up to two tons. Our team has successfully tested this durability. However, we have set the load on the cross member at 300 kg, as there is a risk of damage to your vehicle with a higher load. The quick-release device may be loaded with a maximum of 300 kg.


We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:
You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.
