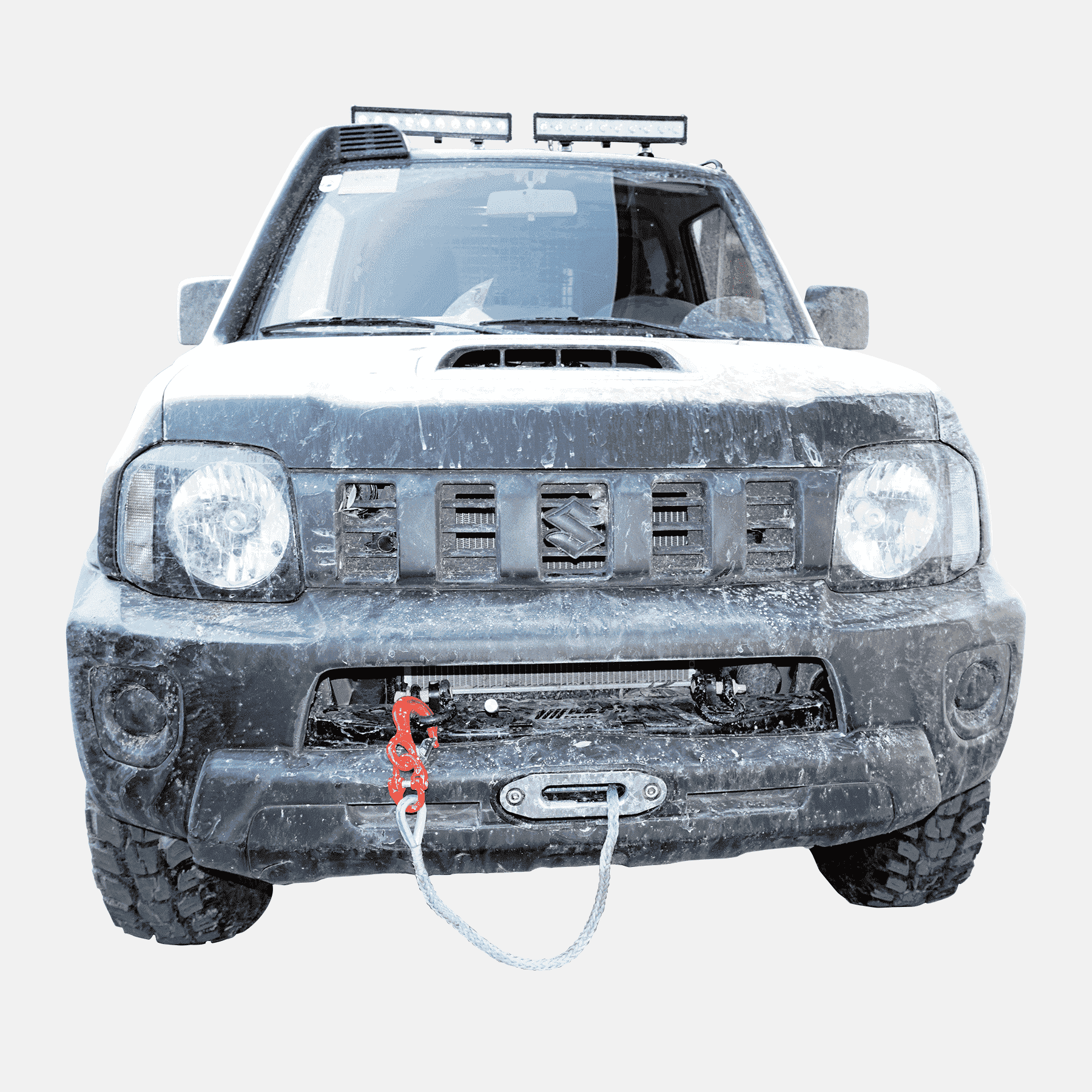

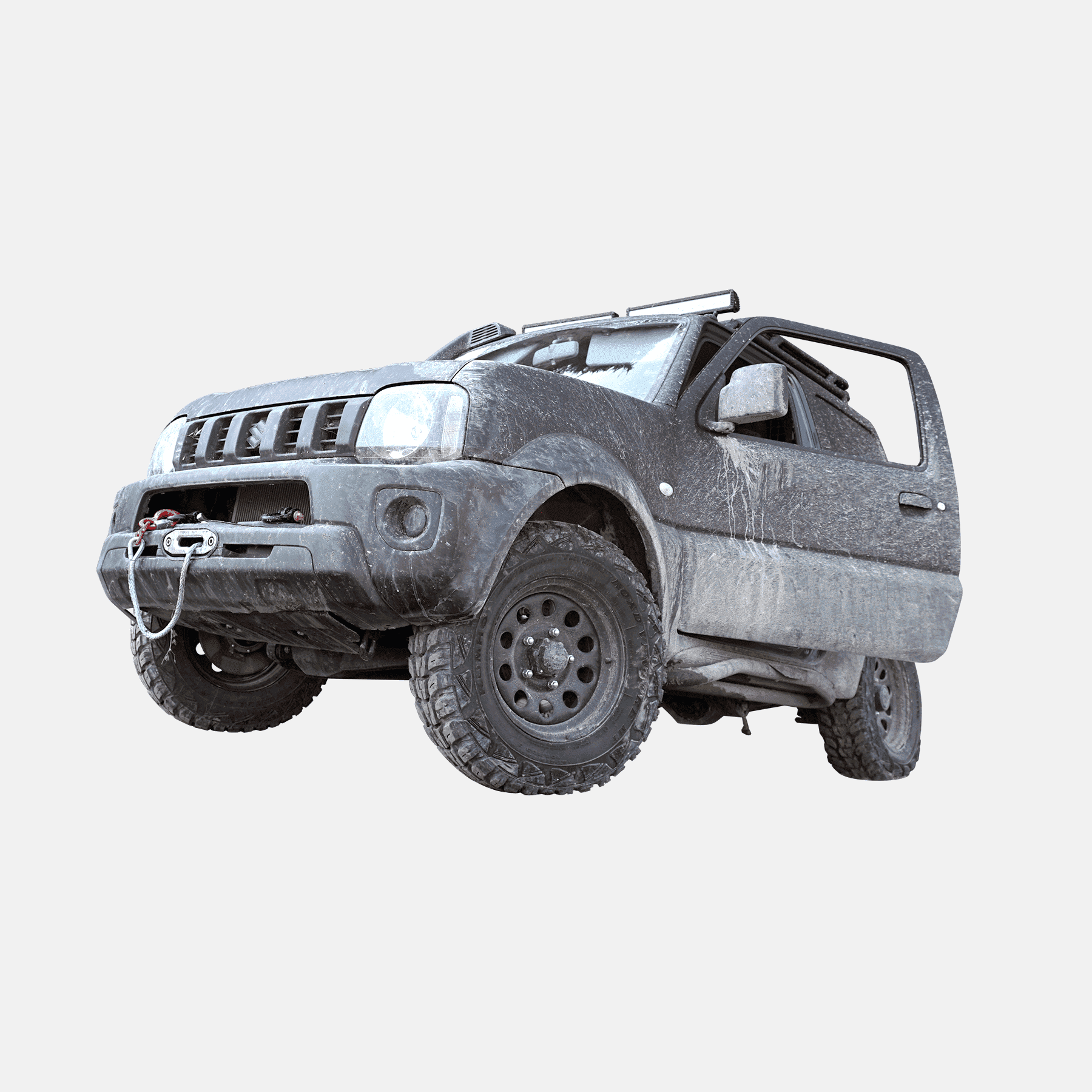

Alpha winch system for Suzuki Jimny FJ - 4.3 tons

The power winch system for the Suzuki Jimny (for all Jimny models from 2013 - 2018)

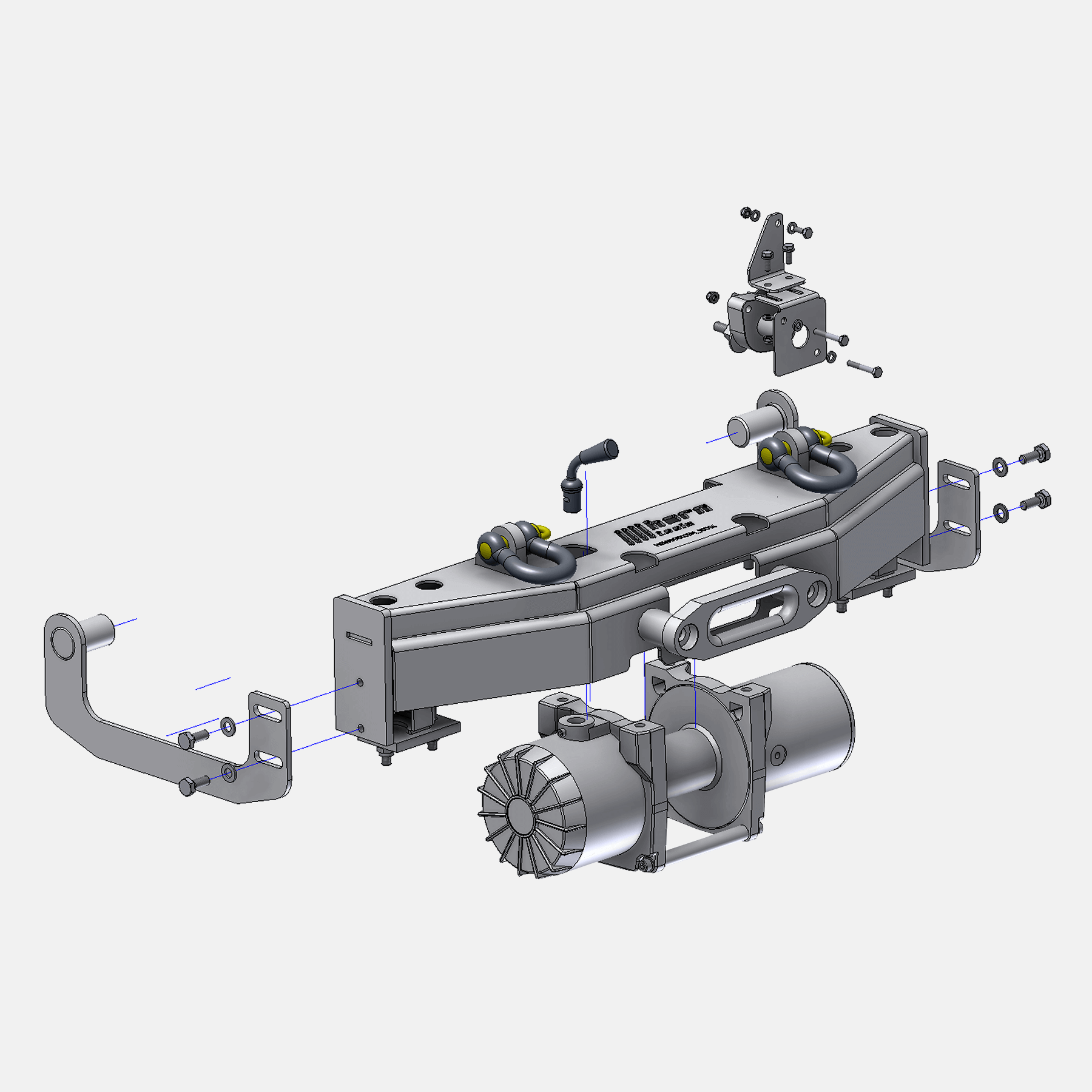

The winch system was developed specifically for the Suzuki Jimny and fits very well into its front. It is mounted at the original points on the vehicle. The horntools Alpha 9.5 winch was specially developed for users who have little space available. Despite its compact design, the winch has a pulling force of 4.3 tons.

Characteristics:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing motor/gearbox
• Internal drum brake with 3 brake shoes
• Removable control unit (so that the control can be installed anywhere)
• Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

• Installation set
• Winch
• Aluminum cable window
• Fastening screws
• Synthetic rope with hooks
• Snatch block with hook
• Cable remote control
• Radio remote control
• Operation manual
• TÜV parts certificate

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise. No parts certificate is provided. An individual acceptance is necessary.
